DEEP ASYM 1.0 PAR16

DEEP ADJUST asym 1.0 PAR16

112420B0

Electronic

LED
Loxone
PAR16

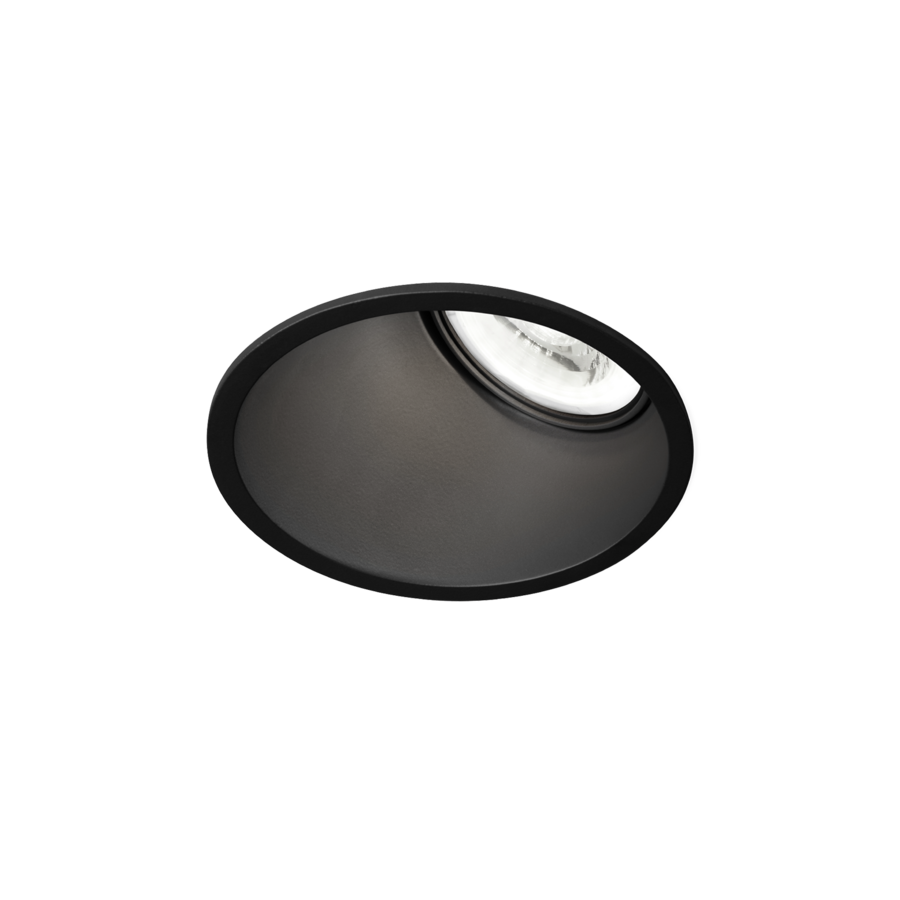

Colour

Black Matt

List price

69,80 €

incl 20% VAT

Complete article with lamp from accessory section

Availability Check

Availability

Quantity

Oops seems like there was an error. Please try again.

Description
Projects

Downloads
Accessories
FAMILY OVERVIEW

Downloads
Description
Tender text

DEEP ADJUST asym 1.0 PAR16 0
DEEP ADJUST asym 1.0 PAR16 - PAR16 LAMP 2700K CRI90 0
DEEP ADJUST asym 1.0 PAR16 - PAR16 LAMP 3000K CRI90 0

CAD 2D [725 KB]
3DS [58 KB]
DWG [90 KB]
Catalogue Page [326 KB]
Drawing [565 KB]
Mounting Instructions [2 MB]
Product Image [462 KB]
Revit BIM [915 KB]
Datasheet [1 MB]
Tender text [867 B]

LDC Diagram [17 KB]
IES [1 KB]
LDT Product [2 KB]
ROLF [254 KB]

LDC Diagram [17 KB]
IES [1 KB]
LDT Product [2 KB]
ROLF [254 KB]

DEEP ASYM 1.0 PAR16

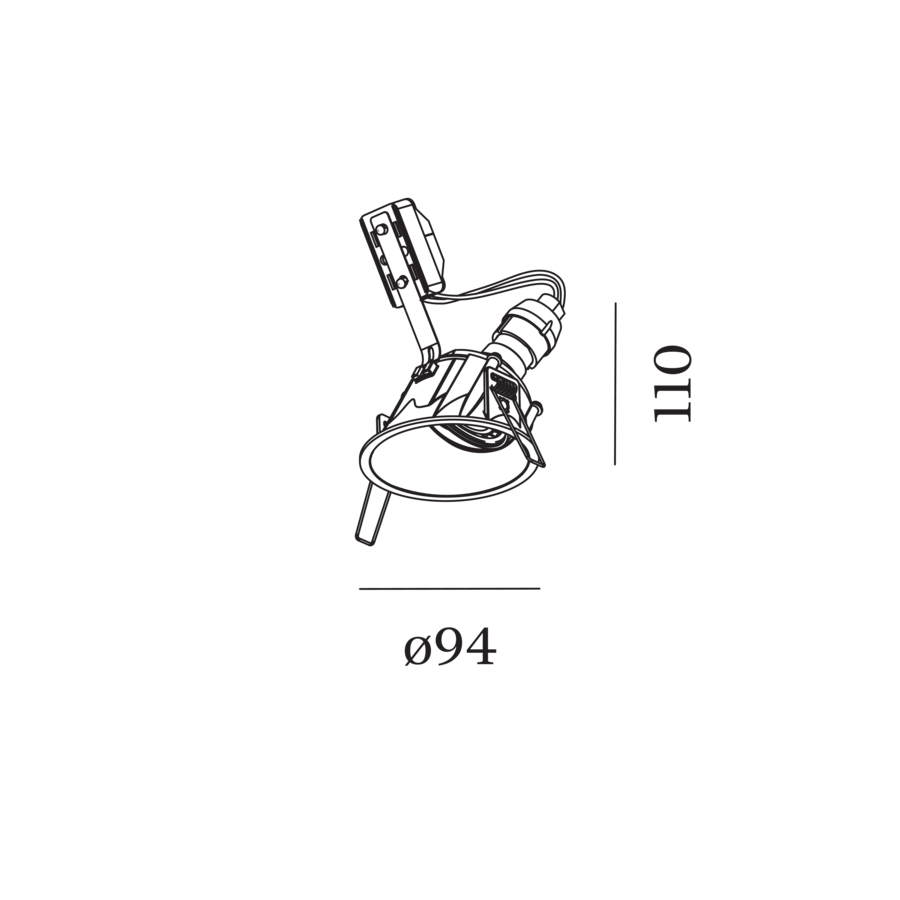

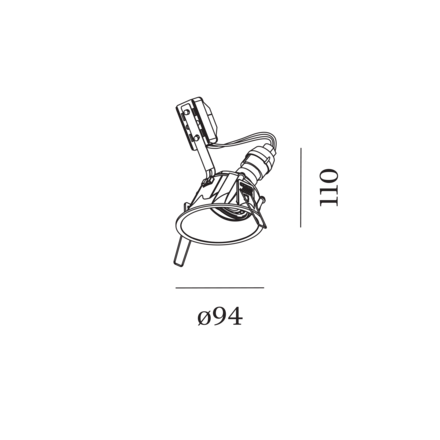

Drawing

General

Scope

Interior

Mounting

Ceiling

Fixation

Recessed

Product colour

Black Matt

RAL colour code

RAL 9005

Type

PAR16

IP Rating

IP20

Technical Details

Voltage

100 - 240 V

Lamp Type

PAR16

Lamp socket

GU10

Safety class

Class 2

Physical

Height

115 mm

Diameter

94 mm

Weight

0.23 kg

Mounting

wire springs

Tilt max.

35°

Rotation

355°

Cutout

Diameter

87-88 mm

Min. ceiling thickness

4 mm

Max. ceiling thickness

25 mm

Recessed Depth

120 mm

Round ceiling recessed downlight made from die-cast aluminium; adjustable; asymmetric light beam; surface Black Matt; powder coated, matt texture; RAL 9005; installation without tools using wire springs; suitable for ceiling thickness of 4-25 mm; recessed depth 120 mm; lamp socket GU10; lamp type PAR16; max. 12W; 100 - 240 V; 355° rotatable and 35° tiltable; degree of protection IP20; Class 2; IC rated; lamp not included;

General: Ceiling, Recessed, tilt max 35°, rotation 355°, Black Matt, RAL 9005, IP20, Interior, 375 | 390 lm, CIE flux code: 94 98 100 100 81

LED: lamp PAR16, socket GU10, max. per socket 12.0 W, CRI ≥ 90

Electrical: 100 - 240 V, inset 6.5 W, Class 2

Physical: diameter 94 mm, height 115 mm, 0.23 kg, wire springs

Cutout: diameter 87-88 mm, min. ceiling thickness 4 mm, max. ceiling thickness 25 mm, recessed depth 120 mm
