MAP ASYM 1.2

7515A8I5
Colour
Inox
Colour Temperature
List price
364,40 €
incl 20% VAT

Optional recessed housing available

Availability Check
Availability
Drawing
MAP ASYM 1.2
Drawing

General

Scope
Exterior
Mounting
Floor
Fixation
Recessed
Product colour
Inox
Type
LED
IP Rating
IP67
Shock resistance rating
IK08

LED

Light Colour
3000 K
LED lifetime
L70 / 55000h

Optical

Beam angle
Asymetric

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
565 lm
Total power
11.4 W
Safety class
Class 2

Physical

Height
113 mm
Diameter
120 mm
Weight
1.06 kg

Cutout

Recessed Depth
160 mm

Replaceability

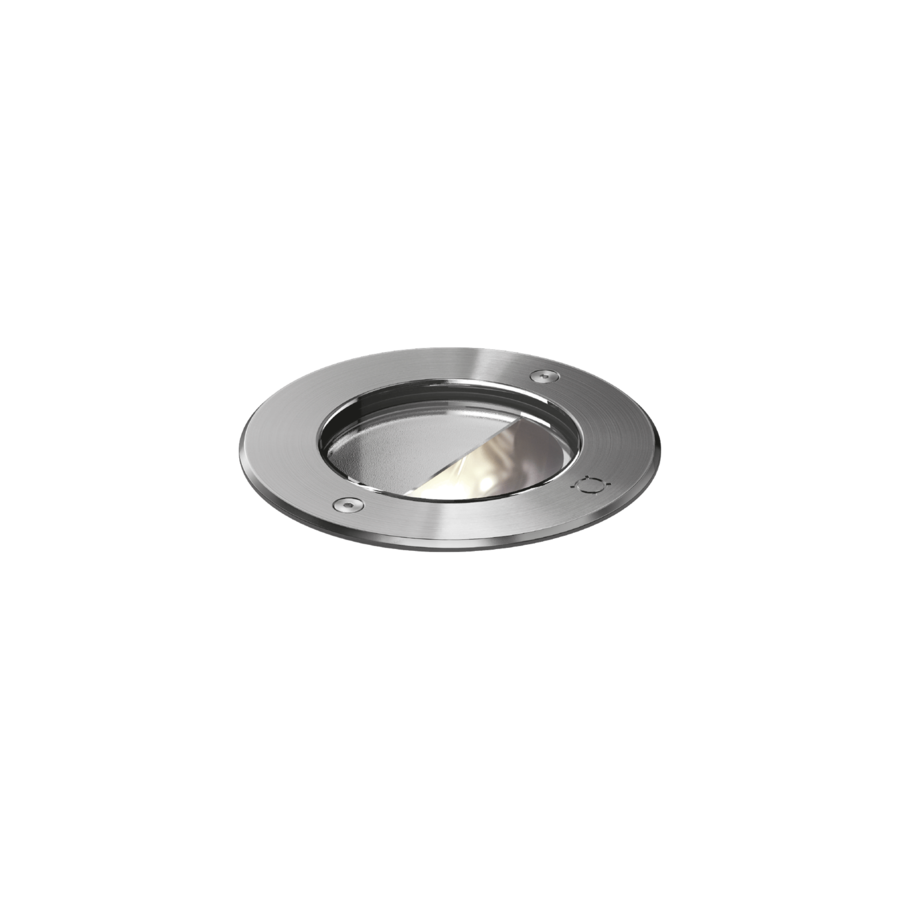

Round floor recessed luminaire made from stainless steel and glass; asymmetric light beam; surface Inox; recessed depth 160 mm; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; degree of protection IP67; Class 2; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Floor, Recessed, Inox, IP67, IK08, Exterior, 565 lm, CIE flux code: 31 58 80 0 100
LED: 3000 K, CRI ≥ 90, L70 / 55000h, initial MacAdam ≤ 3 SDCM
Optical: Asymetric
Electrical: phase-cut dim, 220 - 240 V, system 11.4 W, Class 2
Physical: diameter 120 mm, height 113 mm, 1.06 kg
Cutout: recessed depth 160 mm

Accessories

The right Accessories

Ground Housing

MAP 1.2 | CHART 1.2 | MAP ASYM 1.2 | CHART ASYM 1.2

Ground Housing

MAP 1.2 | CHART 1.2 | MAP ASYM 1.2 | CHART ASYM 1.2
