General
Scope
Interior
Mounting
Ceiling
Fixation
Surface
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
LED
Light Colour
2700 K
LED lifetime
L80 / 50000h
Technical Details
Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
1,280 lm
Total power
25.9 W
Safety class
Class 1
Physical
Height
18 mm
Length
1,804 mm
Width
12 mm
Weight
1.47 kg
Replaceability
Awards
Suspended luminaire made from aluminium; shortable pendant rod suspension max. 1800mm; surface Black Matt; powder coated; matt texture; RAL 9005; PCB 3-step binning; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 220 - 240 V; degree of protection IP20; Class 1; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by end-user;
General:
Ceiling, Surface, Black Matt, RAL 9005, IP20, Interior, 1280 lm, CIE flux code: 81 98 100 100 100
LED:
2700 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 3 SDCM
Optical:
Opal, UGR < 22
Electrical:
phase-cut dim, 220 - 240 V, system 25.9 W, Class 1
Physical:

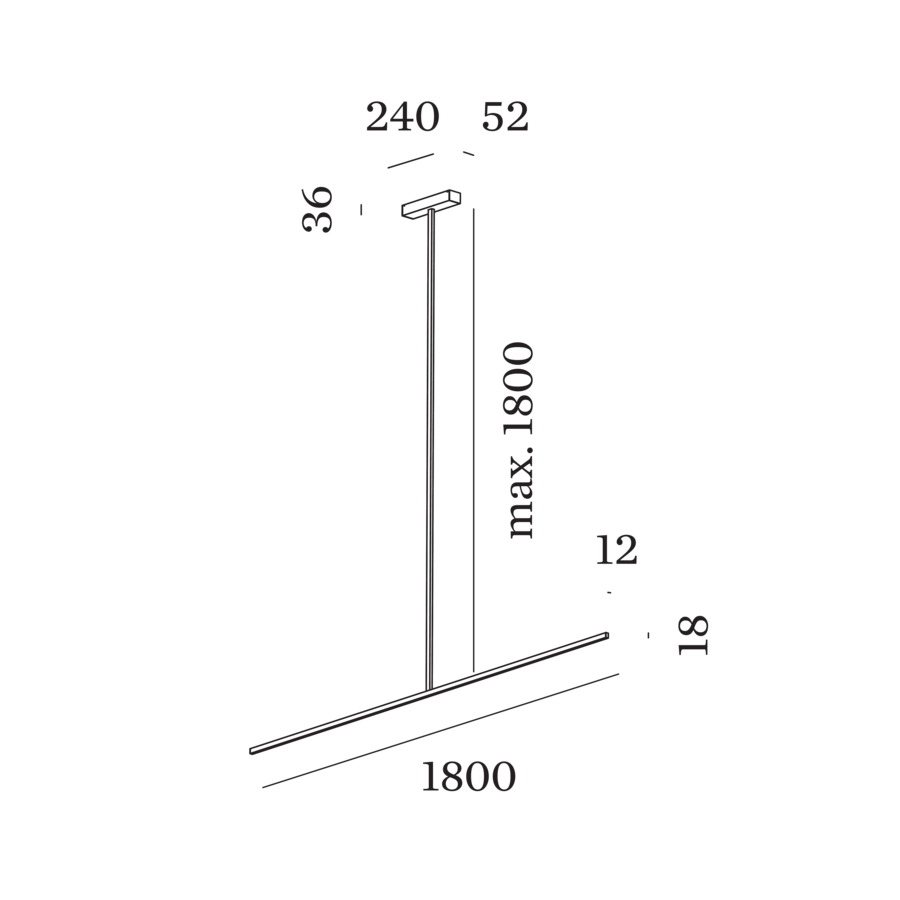

length 1804 mm, width 12 mm, height 18 mm, 1.47 kg
