15575LBB9
Electronic
Colour
Black Matt
Colour Temperature
Beam Angle

Article includes all needed accessories

Availability Check
Availability

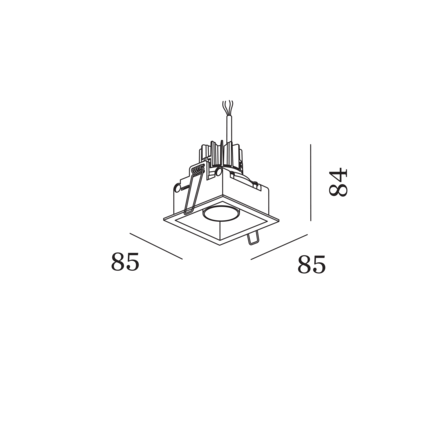

Drawing
SNEAK TRIM 1.0 Loxone
Drawing

General

Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Black Matt
Type
Loxone
IP Rating
IP20

LED

Light Colour
colour warm dimming
Colour Temperature Range
1800 K - 3000 K
Colour Rendering Index
CRI ≥ 90

Optical

Beam angle
30° Standard

Technical Details

Control
excl. power supply
Voltage
24 V
Luminous flux
500 lm
Safety class
Class 3

Physical

Height
90 mm
Length
85 mm
Width
85 mm
Weight
0.19 kg
Tilt max.
35°
Rotation
355°

Replaceability

Squared ceiling recessed luminaire made from aluminium; surface Black Matt; powder coated, matt texture; with COB (Chip on Board) technology for maximum efficiency; light colour 1800 K - 3000 K colour warm dimming; CRI ≥ 90; beam angle 30°; 355° rotatable and 35° tiltable; degree of protection IP20; Class 3; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Ceiling, Recessed, tilt max 35°, rotation 355°, Black Matt, IP20, Interior, 500 lm
LED: colour warm dimming, 1800 K - 3000 K, CRI ≥ 90, L80 / 100000h, initial MacAdam ≤ 2 SDCM
Optical: Standard, beam angle 30°
Electrical: excl. power supply, 24 V, system 7.0 W, Class 3
Physical: length 85 mm, width 85 mm, height 90 mm, 0.19 kg
