Example picture RETO 1.3
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0
RETO WALL SURFACE OUTDOOR 2.0

RETO WALL SURFACE OUTDOOR 2.0

7456A4A5
Colour
Anthracite Grey
Colour Temperature
Availability Check
Availability

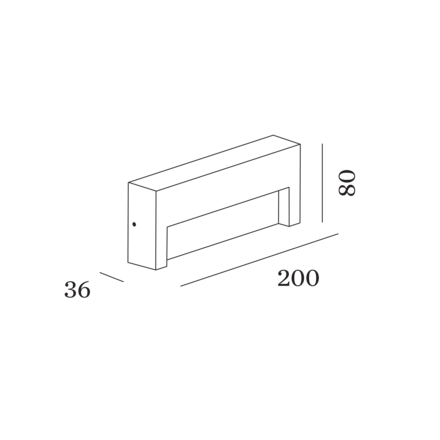

Drawing
RETO WALL SURFACE OUTDOOR 2.0
Drawing

General

Scope
Exterior
Mounting
Wall
Fixation
Surface
Product colour
Anthracite Grey
RAL colour code
RAL 7016
Type
LED
IP Rating
IP65

LED

Light Colour
3000 K
LED lifetime
L80 / 50000h

Optical

Beam angle
Asymetric

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
335 lm
Total power
8.7 W
Safety class
Class 1

Physical

Height
80 mm
Length
200 mm
Width
36 mm
Weight
0.58 kg

Replaceability

Rectangular wall surface luminaire made from aluminium; surface Anthracite Grey; powder coated; matt texture; RAL 7016; PCB 3-step binning; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; degree of protection IP65; Class 1; driver included; light source not replaceable; control gear replaceable by end-user;
General: Wall, Surface, Anthracite Grey, RAL 7016, IP65, Exterior, 335 lm, CIE flux code: 57 85 97 99 100
LED: 3000 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 3 SDCM
Optical: Asymetric
Electrical: phase-cut dim, 220 - 240 V, system 8.7 W, Class 1
Physical: length 200 mm, width 36 mm, height 80 mm, 0.58 kg
