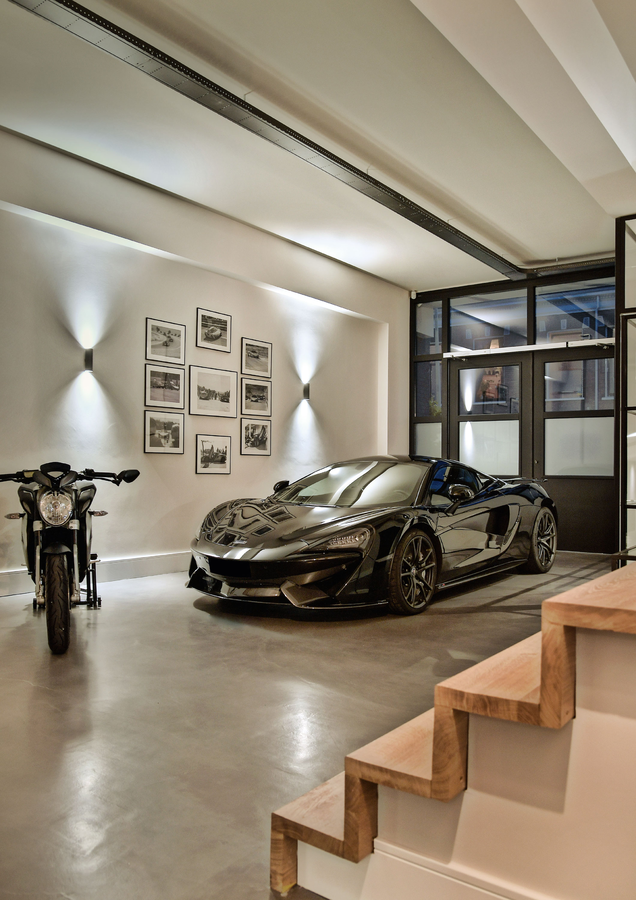

Private Residence Arnhem
Private Residence Arnhem
Example picture RAY mini 2.0

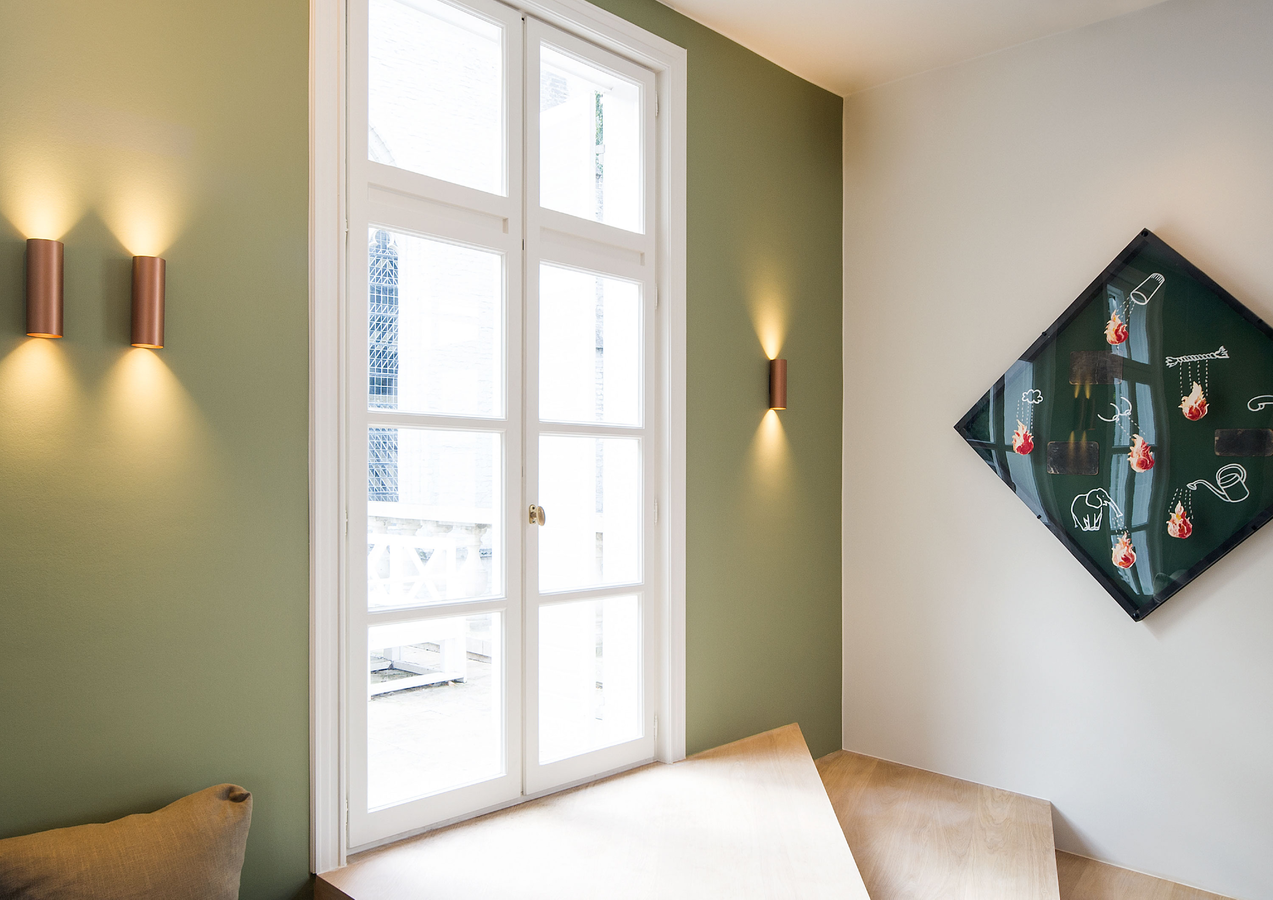

Restaurant Gust
Restaurant Gust
Example picture RAY mini 2.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
RAY WALL mini 1.0
Restaurant De Koolputten
Restaurant De Koolputten
Example picture RAY mini 2.0

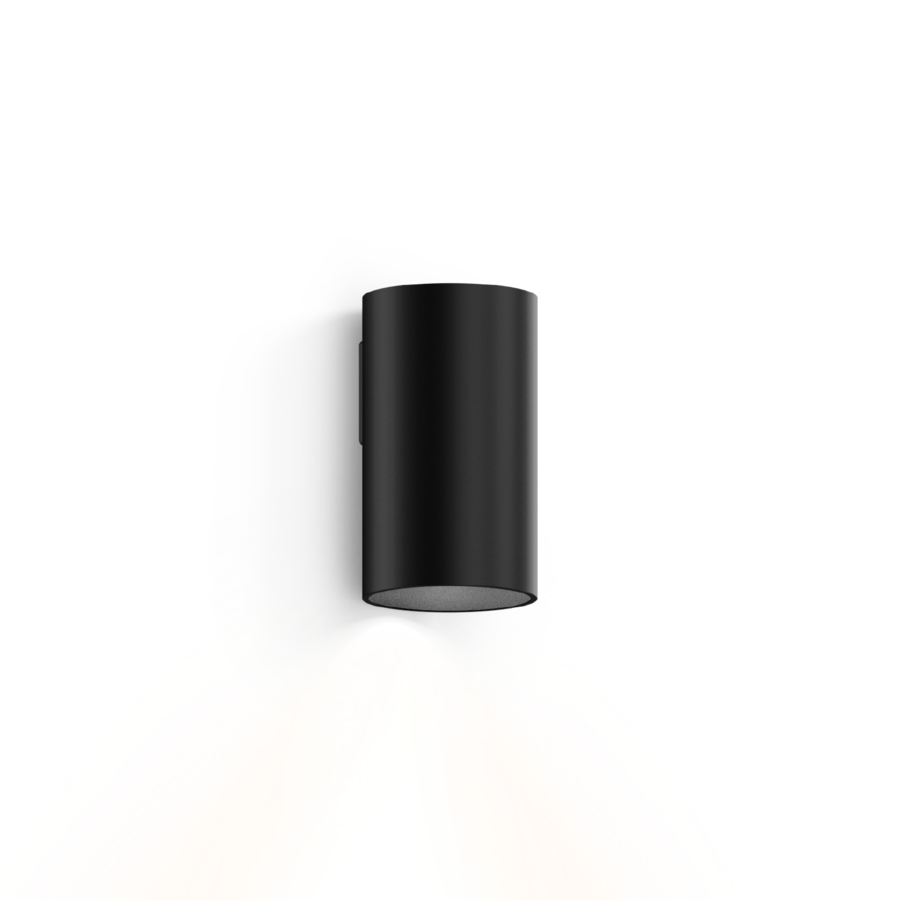

RAY WALL mini 1.0

300220B0
Colour
Black Matt

Complete article with lamp from accessory section

Availability Check
Availability
Drawing
RAY MINI 1.0
Drawing

General

Scope
Interior
Mounting
Wall
Fixation
Surface
Product colour
Black Matt
RAL colour code
RAL 9005
Type
PAR16
IP Rating
IP20

Technical Details

Voltage
100 - 240 V
Lamp Type
PAR16
Lamp socket
GU10
Safety class
Class 1

Physical

Height
115 mm
Diameter
67 mm
Weight
0.21 kg
Cylindrical wall surface mounted luminaire made from aluminium; surface Black Matt; powder coated; matt texture; RAL 9005; direct light distribution; lamp socket GU10; lamp type PAR16; max. 12W; 100 - 240 V; lamp not included; degree of protection IP20; Class 1;
General: Wall, Surface, Black Matt, RAL 9005, IP20, Interior, 425 | 405 lm, CIE flux code: 94 98 100 100 88
LED: lamp PAR16, socket GU10, max. per socket 12.0 W, CRI ≥ 90
Electrical: 100 - 240 V, inset 6.5 W, Class 1
Physical: diameter 67 mm, height 115 mm, 0.21 kg

Accessories

The right Accessories

PAR16 LED Lamp

2700K | >90 CRI | GU10
Black

PAR16 LED Lamp

2700K | >80 CRI | GU10
Silver

PAR16 LED Lamp

3000K | >80 CRI | GU10
Silver

PAR16 LED Lamp

2700K | >90 CRI | GU10
Black

PAR16 LED Lamp

3000K | >90 CRI | GU10
Black

PAR16 LED Lamp

2700K | >90 CRI | GU10
White

PAR16 LED Lamp

3000K | >90 CRI | GU10
White
