PLANO 2.0 Loxone

11866LB9
Electronic
Colour
Black Matt
Colour Temperature
Beam Angle

Article includes all needed accessories


Availability Check
Availability

General

Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Black Matt
Type
Loxone
IP Rating
IP20

LED

Light Colour
colour warm dimming
Colour Temperature Range
1800 K - 3000 K
Colour Rendering Index
CRI ≥ 90

Optical

Beam angle
38° Standard

Technical Details

Control
excl. power supply
Voltage
24 V
Luminous flux
1,000 lm
Safety class
Class 3

Physical

Height
83 mm
Length
156 mm
Width
85 mm
Weight
0.48 kg
Tilt max.
35°
Rotation
355°

Replaceability

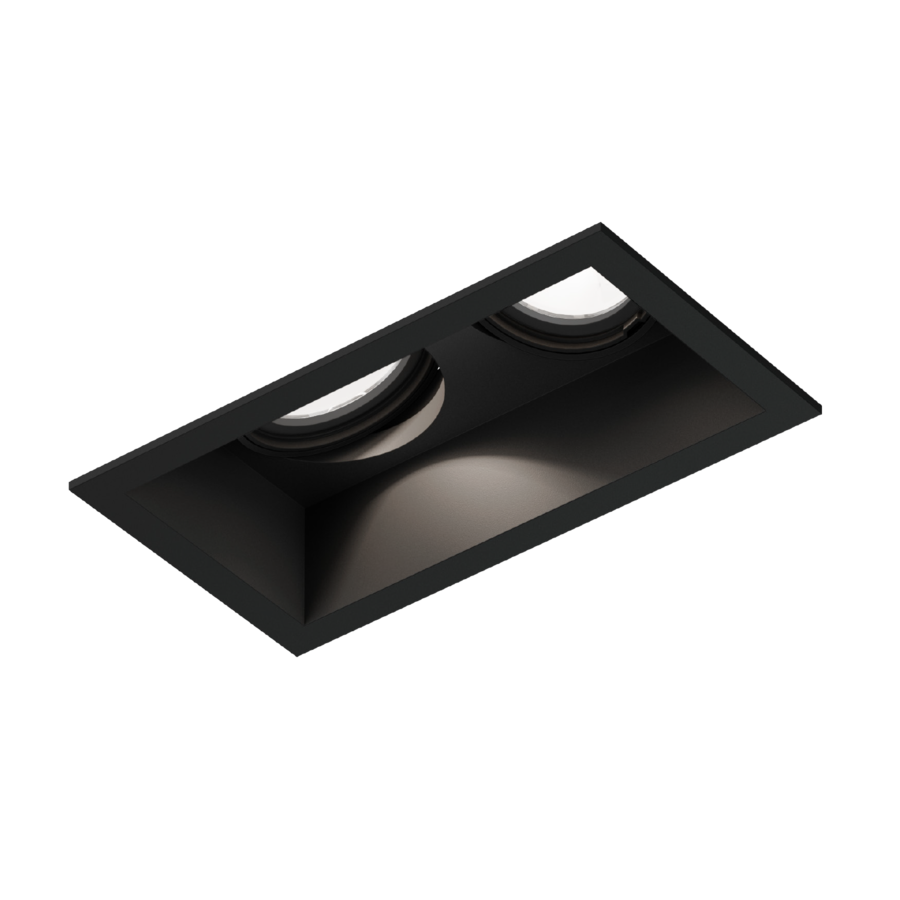

Rectangular ceiling recessed downlight made from die-cast aluminium; adjustable; surface Black Matt; powder coated, matt texture; installation without tools using wire springs; with COB (Chip on Board) technology for maximum efficiency; light colour 1800 K - 3000 K colour warm dimming; CRI ≥ 90; beam angle 38°; 355° rotatable and 35° tiltable; degree of protection IP20; Class 3; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Ceiling, Recessed, tilt max 35°, rotation 355°, Black Matt, IP20, Interior, 1000 lm
LED: colour warm dimming, 1800 K - 3000 K, CRI ≥ 90, L80 / 100000h, initial MacAdam ≤ 2 SDCM
Optical: Standard, beam angle 38°
Electrical: excl. power supply, 24 V, system 7.0 W, Class 3

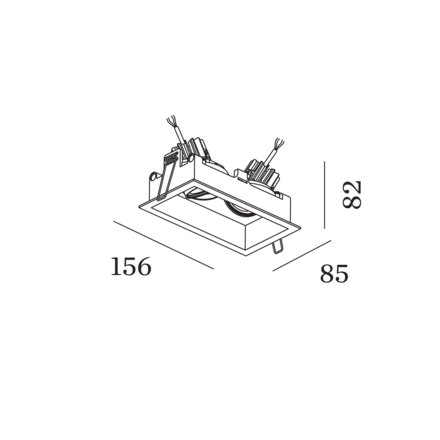

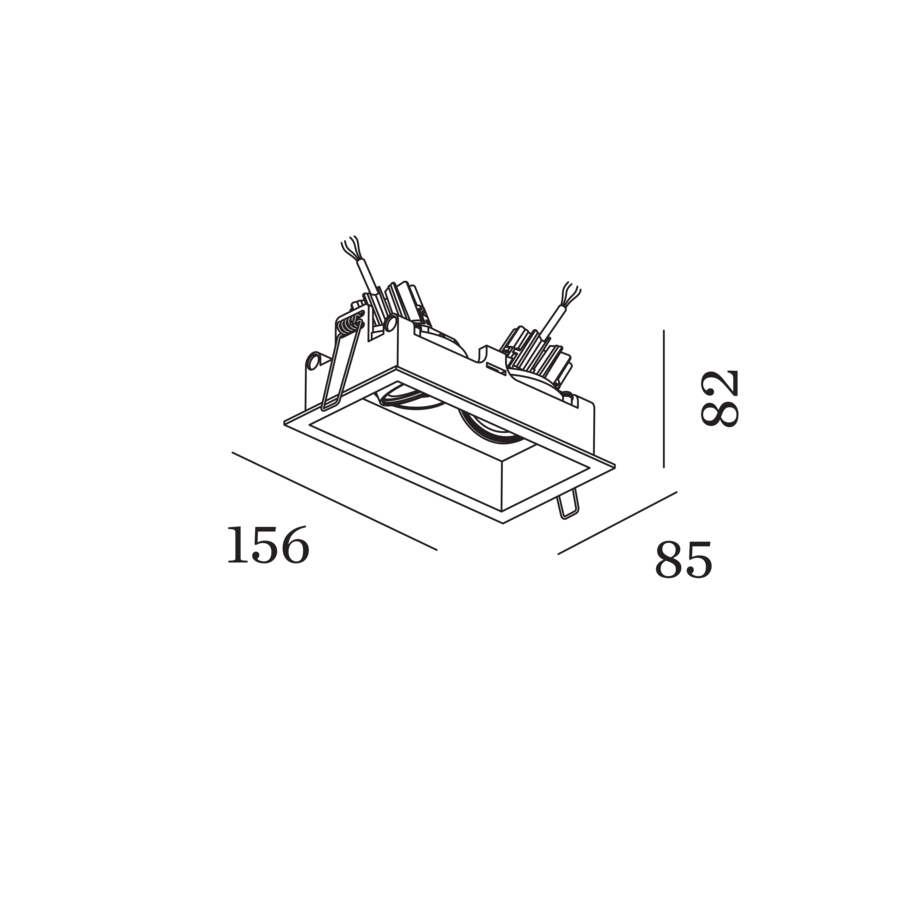

Physical: length 156 mm, width 85 mm, height 83 mm, 0.48 kg
