General
Scope
Interior
Mounting
Ceiling
Fixation
Surface
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
LED
Light Colour
2700 K
LED lifetime
L80 / 50000h
Optical
Beam angle
30° Standard
Technical Details
Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
550 lm
Total power
8.7 W
Safety class
Class 1
Physical
Height
117 mm
Length
140 mm
Width
26 mm
Weight
0.24 kg
Tilt max.
90°
Rotation
350°
Replaceability
Awards

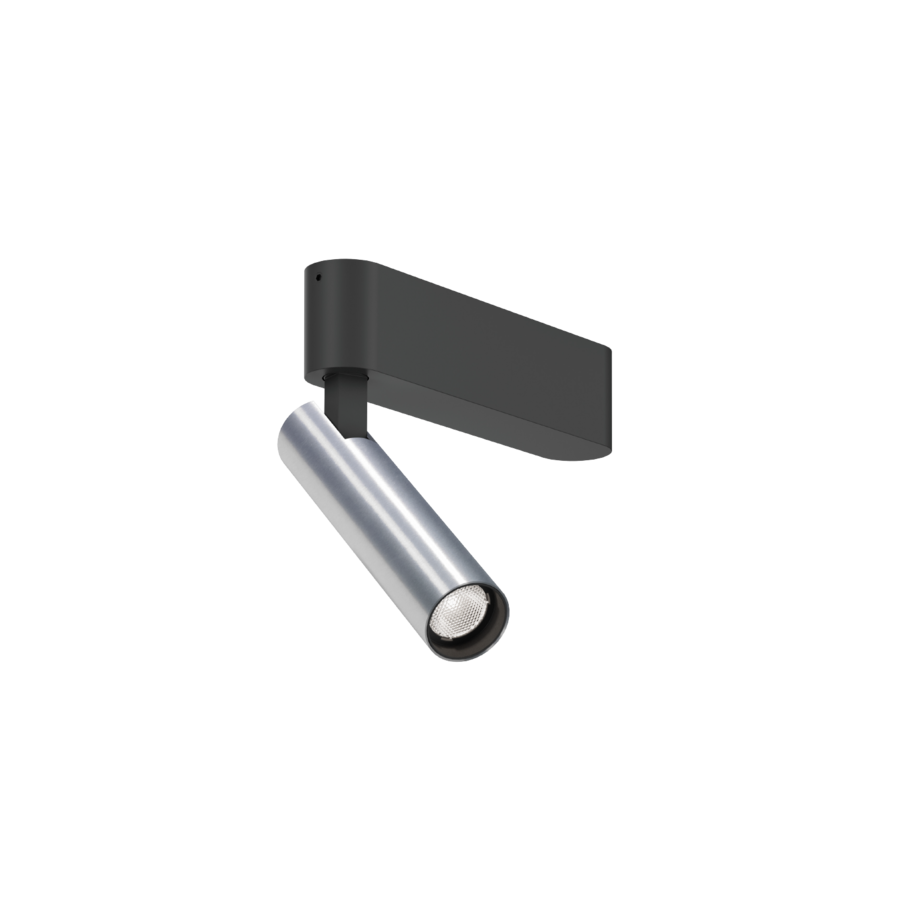

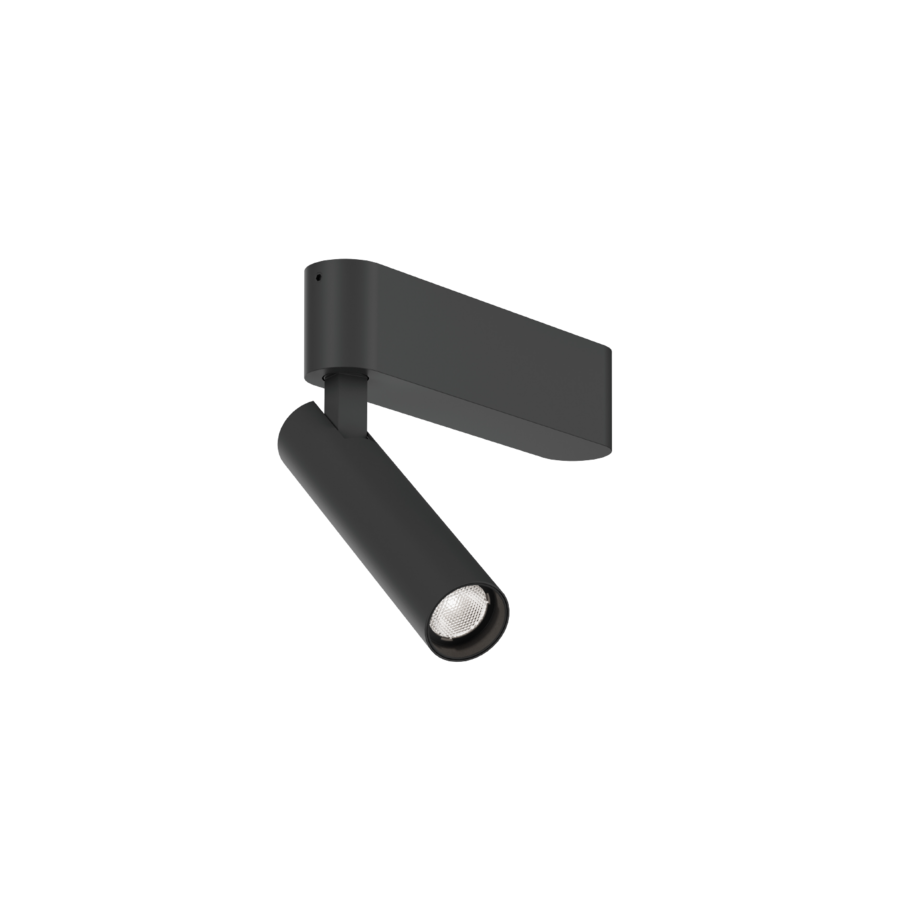

Ceiling surface spotlight made from die-cast aluminium; surface Black Matt; powder coated, matt texture; RAL 9005; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 30°; 350° rotatable and 90° tiltable; degree of protection IP20; Class 1; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by an authorized professional;
General:
Ceiling, Surface, tilt max 90°, rotation 350°, Black Matt, RAL 9005, IP20, Interior, 550 lm, CIE flux code: 97 100 100 100 100
LED:
2700 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 30°
Electrical:
phase-cut dim, 220 - 240 V, system 8.7 W, Class 1
Physical:
length 140 mm, width 26 mm, height 117 mm, 0.24 kg
