MATCH on STREX 1.0
179152B3
Complete article with track accessories from accessory section
Availability Check
General
Scope
Interior
Mounting
Ceiling
Fixation
Track
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
LED
Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L80 / 50000h
Optical
Beam angle
30° Standard
Technical Details
Control
non dim
Voltage
48 V
Luminous flux
530 lm
LED inset power
7 W
Safety class
Class 3
Physical
Height
117 mm
Diameter
26 mm
Weight
0.14 kg
Mounting
incl. Strex 48 V track adapter
Tilt max.
90°
Rotation
360°
Replaceability
Awards

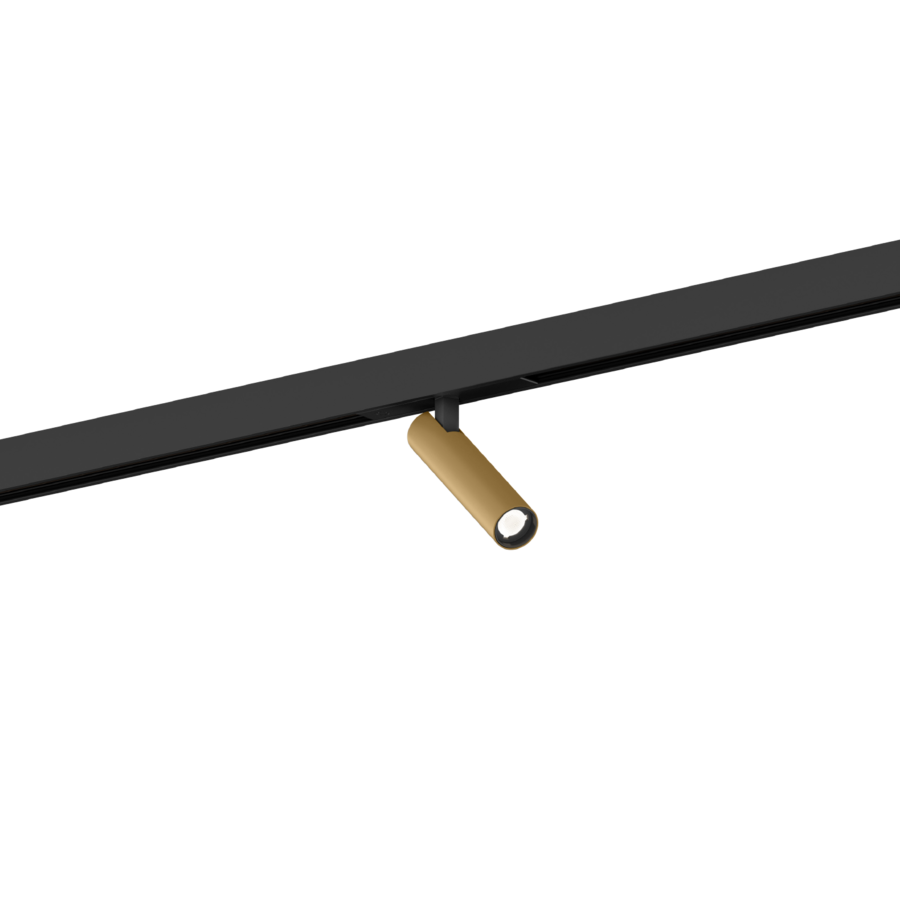

48V track spotlight made from die-cast aluminium; surface Black Matt; powder coated; matt texture; RAL 9005; polycarbonate track adapter in Signal Black; inner ring black; spotlight head 360° rotatable and 90° tiltable; beam angle 30°; with COB (Chip on Board) technology for maximum efficiency; non dim; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; 48 V; degree of protection IP20; Class 3; UGR ≤ 19; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by an authorized professional;
General:
Ceiling, Track, tilt max 90°, rotation 360°, Black Matt, RAL 9005, IP20, Interior, 530 lm, CIE flux code: 97 100 100 100 100
LED:
2700 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 30°
Electrical:
non dim, 48 V, fixture 7.0 W, Class 3
Physical:
diameter 26 mm, height 117 mm, 0.14 kg, adapter115 mm, incl. Strex 48 V track adapter
