MAP 0.6

751168I5
Colour
Inox
Colour Temperature

Optional recessed housing available


Availability Check
Availability
Drawing
Drawing

General

Scope
Exterior
Mounting
Floor
Fixation
Recessed
Product colour
Inox
Type
LED
IP Rating
IP67
Shock resistance rating
IK08

LED

Light Colour
3000 K
LED lifetime
L70 / 55000h

Optical

UGR
UGR < 10
Beam angle
43° Wide

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
310 lm
Total power
5 W
Safety class
Class 2

Physical

Height
95 mm
Diameter
55 mm
Weight
0.38 kg

Cutout

Recessed Depth
100 mm

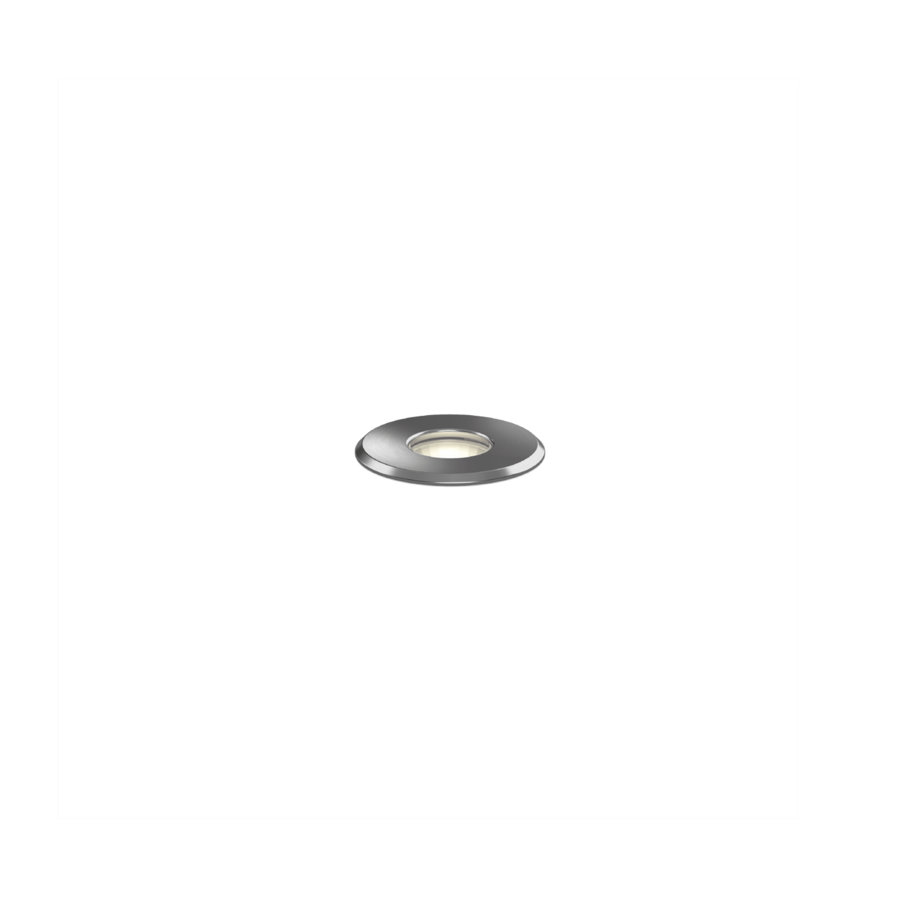

Round floor recessed luminaire made from stainless steel and glass; surface Inox; recessed depth 100 mm; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; beam angle 43°; degree of protection IP67; Class 2; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Floor, Recessed, Inox, IP67, IK08, Exterior, 310 lm, CIE flux code: 25 48 71 0 100
LED: 3000 K, CRI ≥ 90, L70 / 55000h, initial MacAdam ≤ 3 SDCM
Optical: Wide, beam angle 43°, UGR ≤ 10, ≥65° <1500 cd/m²
Electrical: phase-cut dim, 220 - 240 V, system 5.0 W, Class 2
Physical: diameter 55 mm, height 95 mm, 0.38 kg
Cutout: recessed depth 100 mm
