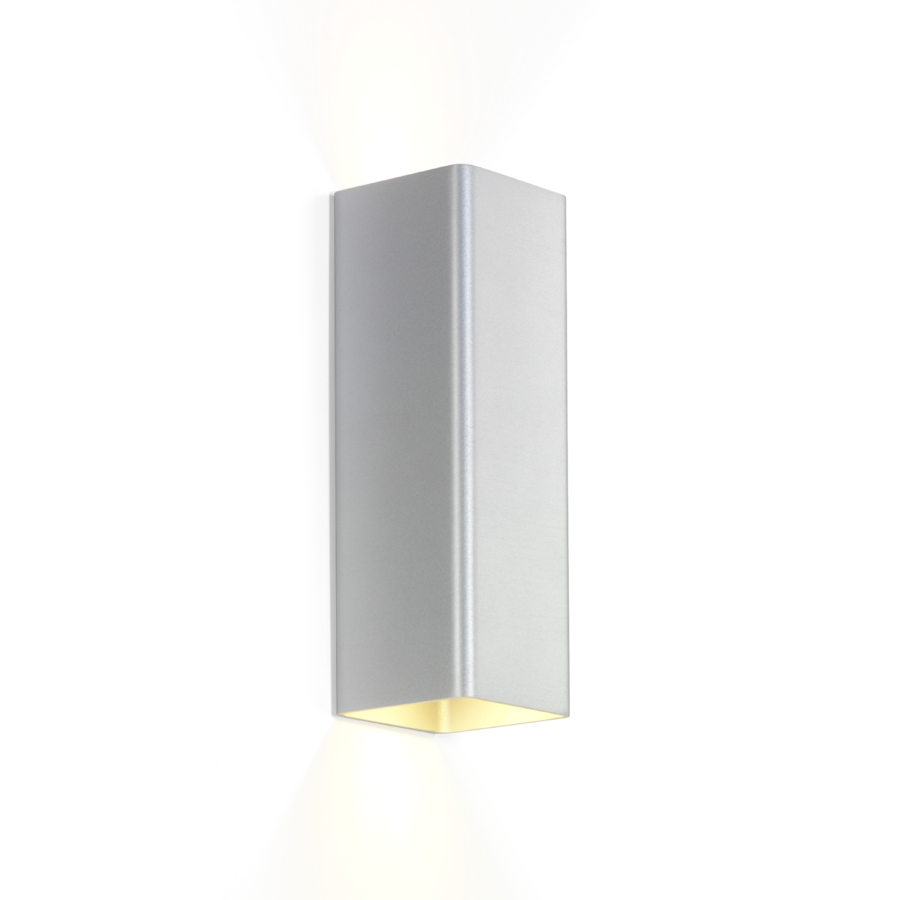

DOCUS WALL mini 2.0

301320L0
Colour
Aluminium Brushed

Complete article with lamp from accessory section

Availability Check
Availability
Drawing
DOCUS MINI 2.0

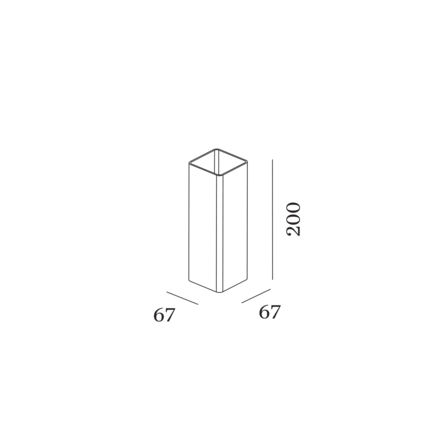

Drawing

General

Scope
Interior
Mounting
Wall
Fixation
Surface
Product colour
Aluminium Brushed
Type
PAR16
IP Rating
IP20

Technical Details

Voltage
100 - 240 V
Lamp Type
2 x PAR16
Lamp socket
GU10
Safety class
Class 1

Physical

Height
200 mm
Length
67 mm
Width
67 mm
Weight
0.43 kg
Rectangular wall surface luminaire made from aluminium; rounded edges; surface Aluminium Brushed; direct/indirect light distribution; lamp socket GU10; lamp type PAR16; 2x max. 12W; 100 - 240 V; lamp not included; degree of protection IP20; Class 1;
General: Wall, Surface, Aluminium Brushed, IP20, Interior, indirect 480 | 460 lm, direct 480 | 460 lm, total 960 | 920 lm, CIE flux code: 96 99 100 50 97
LED: lamp 2 x PAR16, socket GU10, max. per socket 12.0 W, CRI ≥ 90
Electrical: 100 - 240 V, inset 13.0 W, Class 1
Physical: length 67 mm, width 67 mm, height 200 mm, 0.43 kg

Accessories

The right Accessories

PAR16 LED Lamp

2700K | >80 CRI | GU10
Silver

PAR16 LED Lamp

2700K | >80 CRI | GU10
Silver

PAR16 LED Lamp

3000K | >80 CRI | GU10
Silver

PAR16 LED Lamp

2700K | >90 CRI | GU10
Black

PAR16 LED Lamp

3000K | >90 CRI | GU10
Black

PAR16 LED Lamp

2700K | >90 CRI | GU10
White

PAR16 LED Lamp

3000K | >90 CRI | GU10
White
