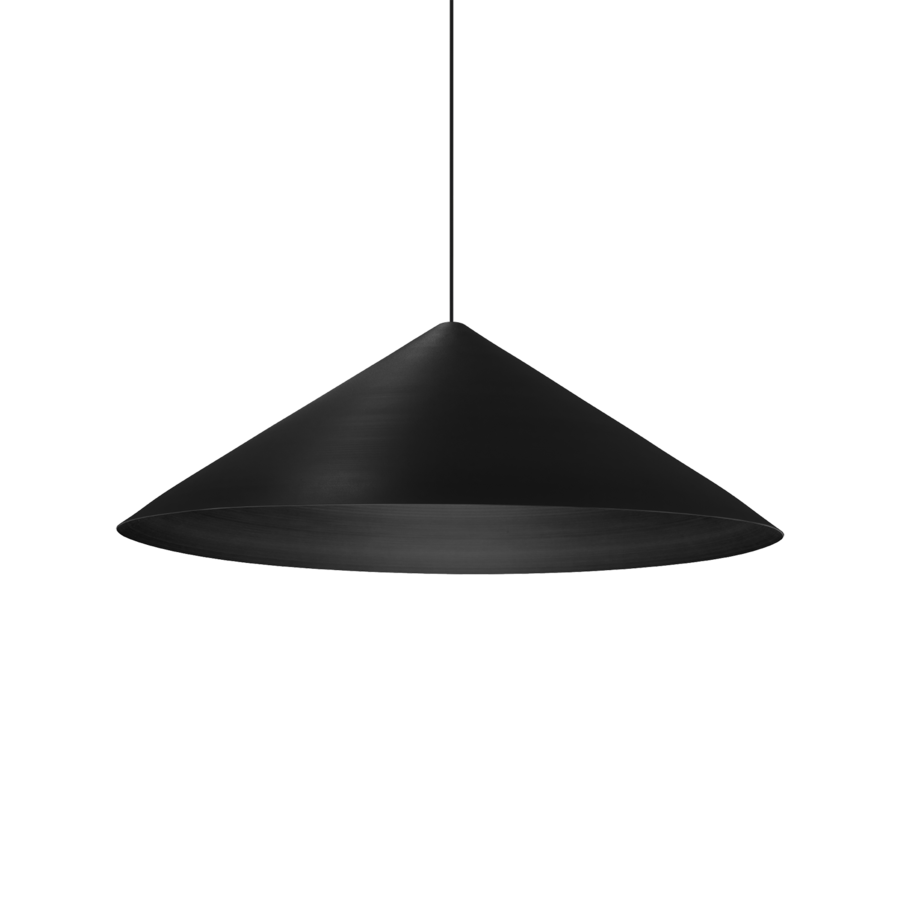

DINOR 3.0 Loxone

25538LBB9

Electronic

LED
Loxone

Colour

Black Matt

Colour Temperature

colour warm dimming

List price

570,40 €

incl 20% VAT

Article includes all needed accessories

Availability Check

Description
Projects

Downloads

CAD 2D [622 KB]
Drawing [2 MB]
Mounting Instructions [960 KB]
Product Image [187 KB]
Datasheet [1 MB]
Tender text [711 B]

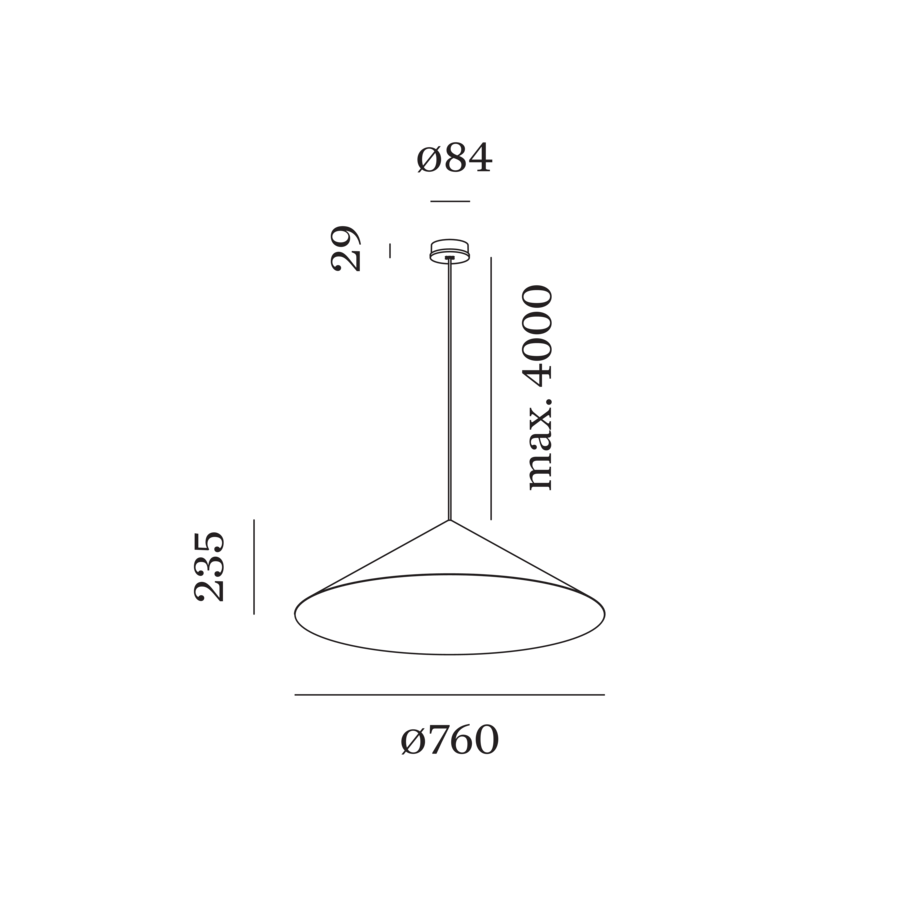

Drawing

General

Scope

Interior

Mounting

Ceiling

Fixation

Suspended

Product colour

Black Matt

RAL colour code

RAL 9005

Type

Loxone

IP Rating

IP20

LED

Light Colour

colour warm dimming

Colour Temperature Range

1800 K - 3000 K

Technical Details

Control

excl. power supply

Voltage

24 V

Luminous flux

750 lm

Total power

12 W

Safety class

Class 3

Physical

Height

235 mm

Diameter

760 mm

Weight

5.5 kg

Replaceability

Cone shaped ceiling suspended luminaire made from aluminium; surface Black Matt wet painted; matt texture; RAL 9005; inclusive black adjustable cable suspension max. 4000mm; PCB 3-step binning; light colour 1800 K - 3000 K colour warm dimming; CRI ≥ 90; 24 V; degree of protection IP20; Class 3; ceiling base included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;

General: Ceiling, Suspended, Black Matt, RAL 9005, IP20, Interior, 750 lm

LED: colour warm dimming, 1800 K - 3000 K, CRI ≥ 90, L80 / 55000h, initial MacAdam ≤ 3 SDCM

Electrical: excl. power supply, 24 V, system 12.0 W, Class 3

Physical: diameter 760 mm, height 235 mm, 5.5 kg
