DEEP 1.0 Loxone

CAD 2D [725 KB]
Mounting Instructions [2 MB]
Product Image [336 KB]
Datasheet [1 MB]
Tender text [953 B]

General

Scope

Interior

Mounting

Ceiling

Fixation

Recessed

Product colour

Black Matt

Type

Loxone

IP Rating

IP20

LED

Light Colour

colour warm dimming

Colour Temperature Range

1800 K - 3000 K

Colour Rendering Index

CRI ≥ 90

Optical

Beam angle

38° Standard

Technical Details

Control

excl. power supply

Voltage

24 V

Luminous flux

405 lm

Safety class

Class 3

Physical

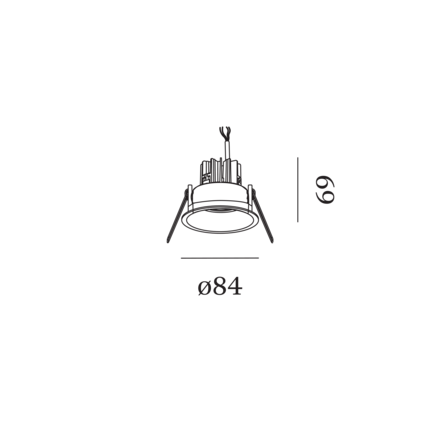

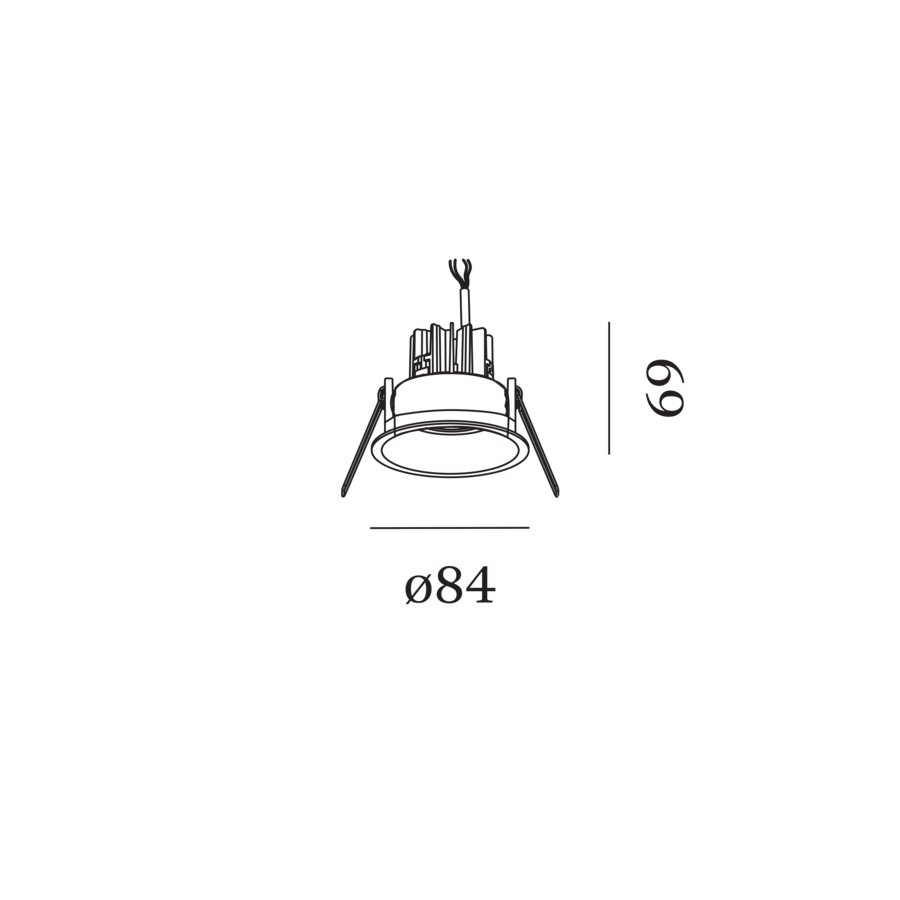

Height

69 mm

Diameter

84 mm

Weight

0.15 kg

Mounting

wire springs

Cutout

Diameter

76-79 mm

Min. ceiling thickness

4 mm

Max. ceiling thickness

27 mm

Recessed Depth

90 mm

Replaceability

Round ceiling recessed downlight made from die-cast aluminium; surface Black Matt; powder coated, matt texture; installation without tools using wire springs; suitable for ceiling thickness of 4-27 mm; recessed depth 90 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 1800 K - 3000 K colour warm dimming; CRI ≥ 90; beam angle 38°; degree of protection IP20; Class 3; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;

General: Ceiling, Recessed, Black Matt, IP20, Interior, 405 lm

LED: colour warm dimming, 1800 K - 3000 K, CRI ≥ 90, L80 / 100000h, initial MacAdam ≤ 2 SDCM

Optical: Standard, beam angle 38°

Electrical: excl. power supply, 24 V, system 7.0 W, Class 3

Physical: diameter 84 mm, height 69 mm, 0.15 kg, wire springs

Cutout: diameter 76-79 mm, min. ceiling thickness 4 mm, max. ceiling thickness 27 mm, recessed depth 90 mm
