BOX mini 1.0
BOX on STREX 1.0
258162BQ3
Complete article with track accessories from accessory section
Availability Check
General
Scope
Interior
Mounting
Ceiling
Fixation
Track
Product colour
Black Matt
Product colour 2
Housing + Inner Reflector: Bronze
Type
LED
IP Rating
IP20
LED
Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
Optical
Beam angle
25° Standard
Technical Details
Control
non dim
Voltage
48 V
Luminous flux
440 lm
LED inset power
7 W
Safety class
Class 3
Physical
Height
82 mm
Length
70 mm
Width
70 mm
Weight
0.2 kg
Mounting
incl. Strex 48 V track adapter
Replaceability

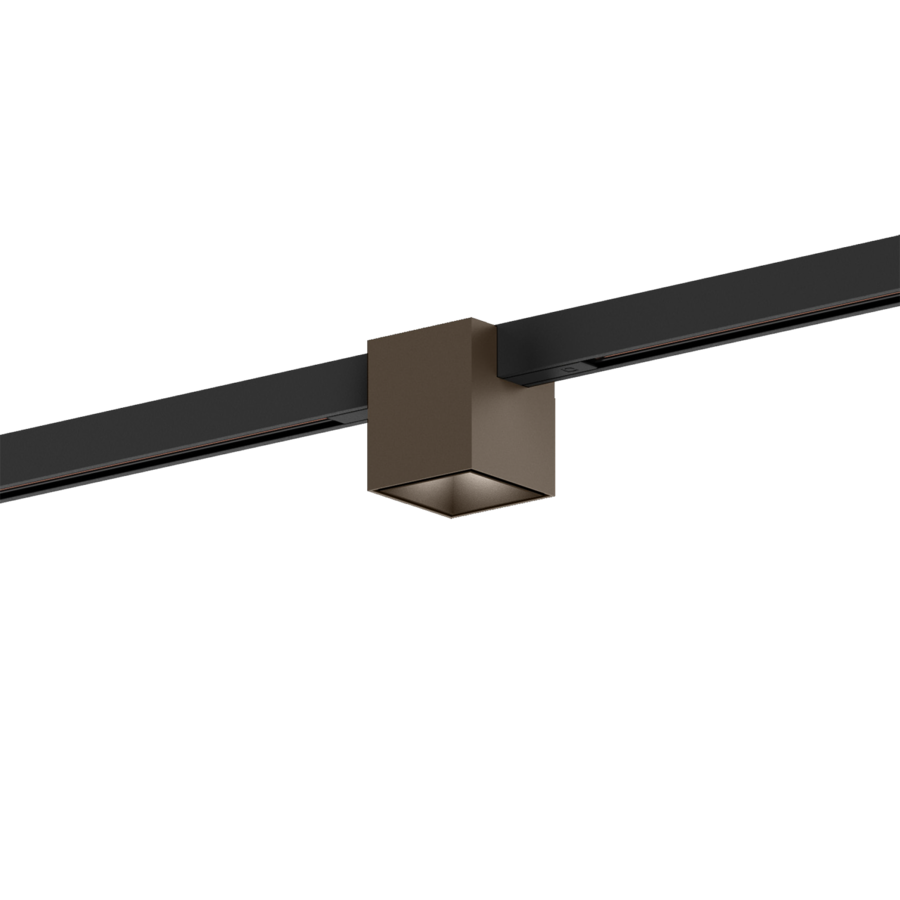

48V track downlight made from die-cast aluminium; square shape; for surface and suspended tracks; adapter in Black Matt; surface housing Bronze wet painted; brushed; with inner reflector in Bronze wet painted; matt fine texture; with COB (Chip on Board) technology for maximum efficiency; non dim; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; CRI (Colour Rendering Index) ≥ 90; 48 V; degree of protection IP20; Class 3; UGR ≤ 13; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by an authorized professional;
General:
Ceiling, Track, Black Matt, Adapter Black Matt, Housing + Inner Reflector Bronze, IP20, Interior, 440 lm, CIE flux code: 99 100 100 100 100
LED:
2700 K, CRI ≥ 90, L80 / 55000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 25°, UGR < 13, ≥65° <1500 cd/m²
Electrical:
non dim, 48 V, inset 7.0 W, Class 3
Physical:
length 70 mm, width 70 mm, height 82 mm, 0.2 kg, adapter171 mm, incl. Strex 48 V track adapter
