Chalet Joux Plane

Chalet Joux Plane

TRAIN 2.0

TRAIN 2.0

TRAIN 2.0

TRAIN 2.0

TRAIN 2.0

TRAIN 2.0

306968W5

Colour

White Matt

Colour Temperature

2700 K
3000 K

Availability Check

Availability

Quantity

Oops seems like there was an error. Please try again.

Description
Projects

Downloads
FAMILY OVERVIEW

Downloads
Description

CAD 2D [641 KB]
Drawing [567 KB]
Product Image [944 KB]
Datasheet [1 MB]

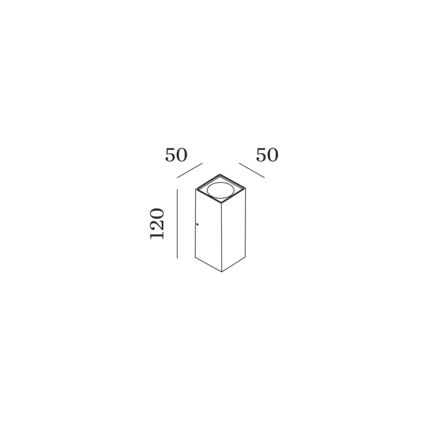

Drawing

Drawing

General

Scope

Interior

Mounting

Wall

Fixation

Surface

Product colour

White Matt

RAL colour code

RAL 9010

Type

LED

IP Rating

IP20

LED

Light Colour

3000 K

LED lifetime

L70 / 55000h

Optical

Beam angle

36° Standard

Technical Details

Control

phase-cut dim

Voltage

220 - 240 V

Light flux

750 lm

Direct flux

375 lm

Indirect flux

375 lm

Total power

8.6 W

Safety class

Class 1

Physical

Height

120 mm

Length

50 mm

Width

50 mm

Weight

0.35 kg
