TRACE SLIM WALL 1.0
333364B5
List price
255,80
€
incl 20% VAT
Availability Check
General
Scope
Interior
Mounting
Wall
Fixation
Surface
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
LED
Light Colour
3000 K
LED lifetime
L80 / 50000h
Optical
Beam angle
23° Standard
Technical Details
Control
phase-cut dim
Voltage
220 - 240 V
Light flux
840 lm
Direct flux
420 lm
Indirect flux
420 lm
Total power
11.4 W
Safety class
Class 1

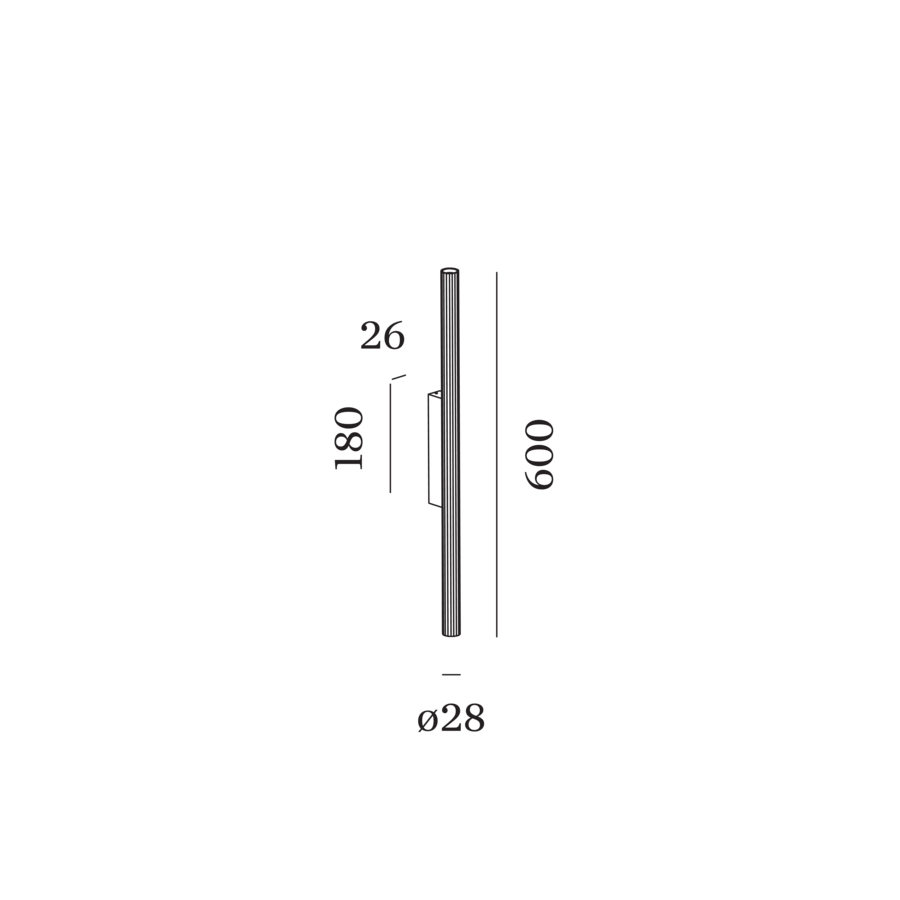

Physical
Height
600 mm
Diameter
28 mm
Weight
0.49 kg
Replaceability
Awards

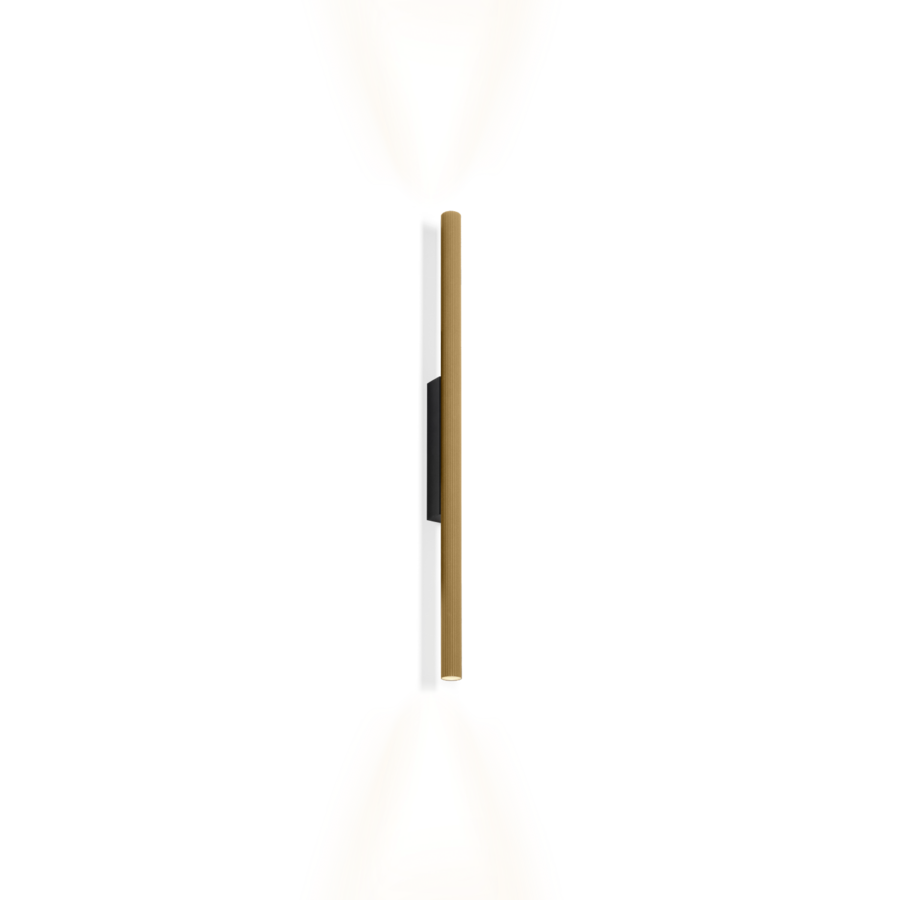

Tubular wall surface luminaire made from aluminium; surface Black Matt; powder coated, matt texture; RAL 9005; up and down light emission; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 23°; 220 - 240 V; degree of protection IP20; Class 1; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by end-user;
General:
Wall, Surface, Black Matt, RAL 9005, IP20, Interior, indirect 420 lm, direct 420 lm, total 840 lm, CIE flux code: 100 100 100 52 100
LED:
3000 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 23°
Electrical:
phase-cut dim, 220 - 240 V, system 11.4 W, Class 1
Physical:
diameter 28 mm, height 600 mm, 0.49 kg
