TRACE CHANDELIER 2.0
Visualisation
Example picture
TRACE CHANDELIER 2.0
TRACE CHANDELIER 3.0
253764B3
List price
942,20
€
incl 20% VAT
Availability Check
General
Scope
Interior
Mounting
Ceiling
Fixation
Suspended
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
LED
Light Colour
2700 K
LED lifetime
L80 / 50000h
Optical
UGR
UGR < 19
Beam angle
30° Standard
Technical Details
Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
1,730 lm
Total power
16.8 W
Safety class
Class 2
Physical
Height
50 mm
Length
2,350 mm
Width
28 mm
Weight
1.1 kg
Replaceability
Awards

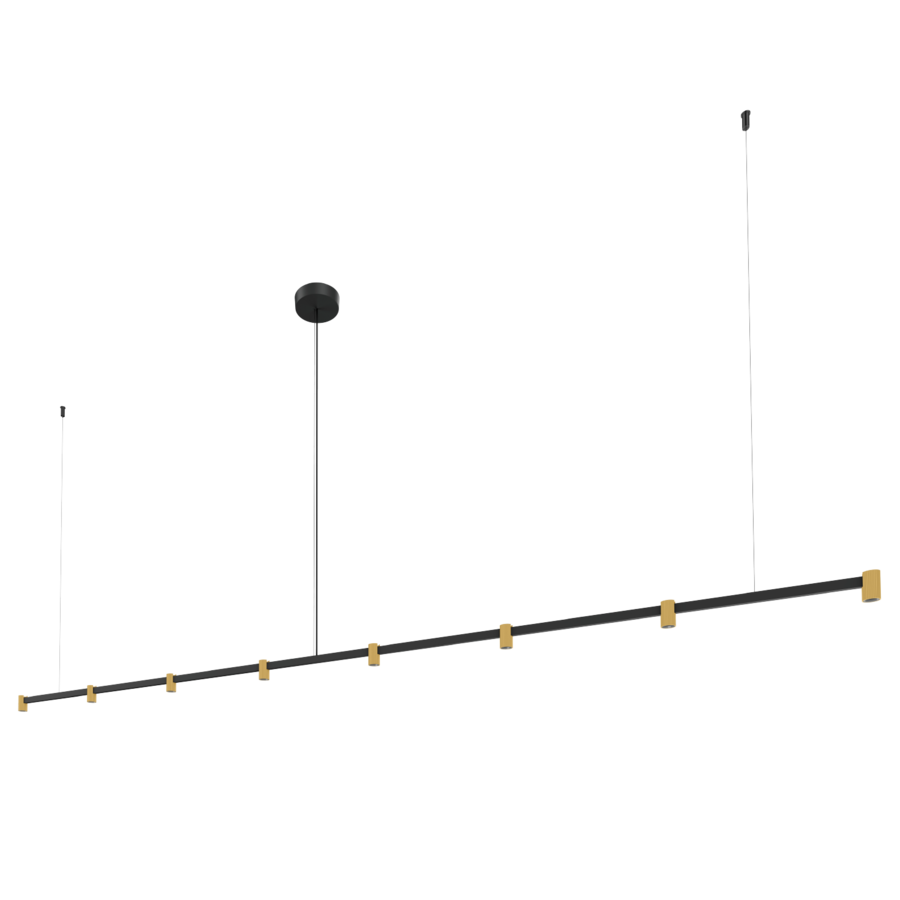

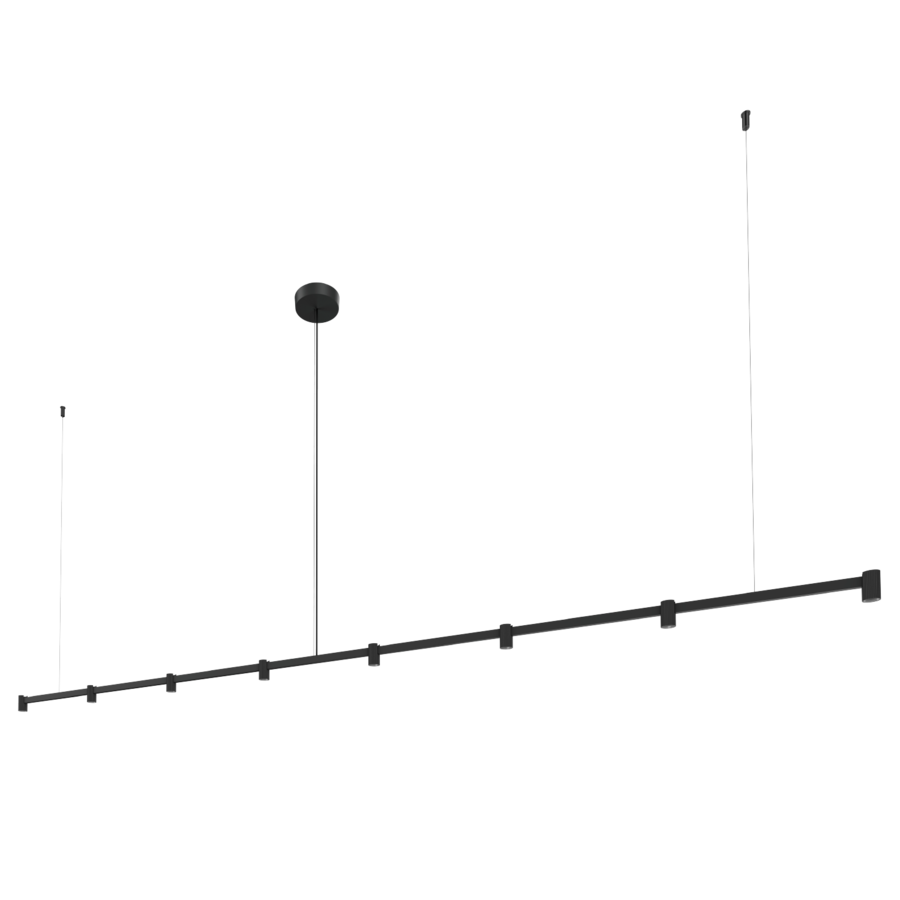

Ceiling suspended luminaire made from aluminium; with 8 spotlights; inclusive adjustable cable suspension max. 2500mm; surface Black Matt; powder coated, matt texture; RAL 9005; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 92; beam angle 30°; 220 - 240 V; degree of protection IP20; Class 2; UGR ≤ 19; driver included; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by end-user;
General:
Ceiling, Suspended, Black Matt, RAL 9005, IP20, Interior, 1730 lm, CIE flux code: 95 99 100 100 100
LED:
2700 K, CRI ≥ 92, L80 / 50000h, initial MacAdam ≤ 3 SDCM , initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 30°, UGR < 19
Electrical:
phase-cut dim, 220 - 240 V, system 16.8 W, Class 2

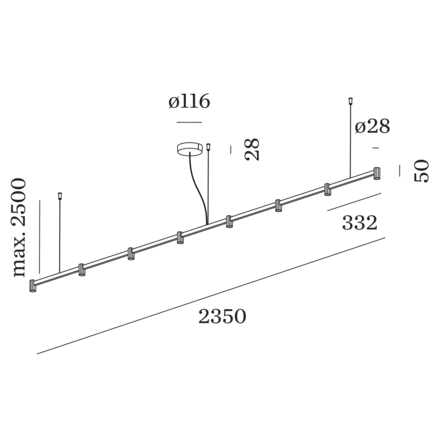

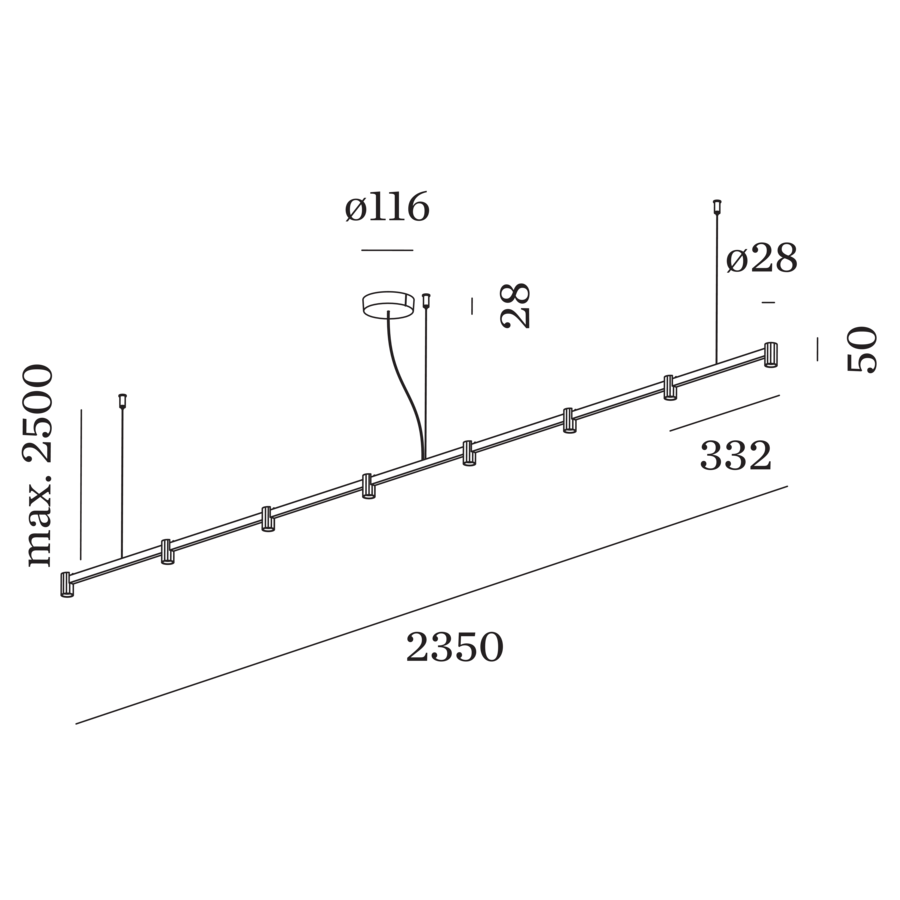

Physical:
length 2350 mm, width 28 mm, height 50 mm, 1.1 kg
