Visualisation
Visualisation

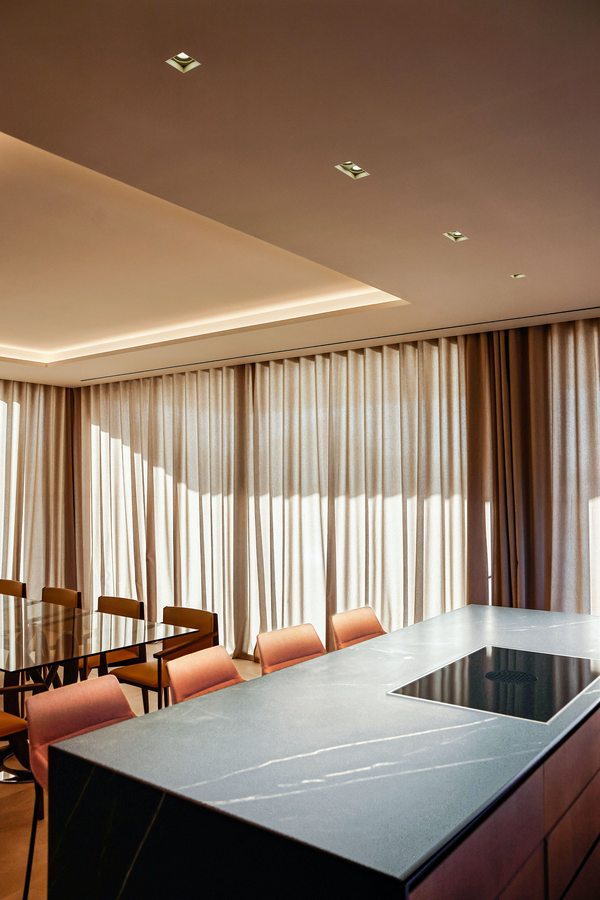

Example picture STRANGE petit 3.0
STRANGE petit 1.0 LED
STRANGE petit 1.0 LED
STRANGE petit trimless 1.0 LED
STRANGE petit trimless 1.0 LED
STRANGE petit 1.0 LED
STRANGE petit 1.0 LED
STRANGE petit trimless 1.0 LED
STRANGE petit trimless 1.0 LED

STRANGE petit trimless 1.0 LED

163461M3
Colour
Champagne
Colour Temperature
Beam Angle
List price
124,20 €
incl 20% VAT

Complete article with plasterkit and driver from accessory section

Availability Check
Availability
Drawing
STRANGE PETIT 1.0 LED
Drawing

General

Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Champagne
Type
LED
IP Rating
IP20

LED

Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L80 / 55000h

Optical

Beam angle
31° Standard

Technical Details

Control
excl. driver
Voltage
17 V
Converter current
350 mA
Luminous flux
520 lm
LED inset power
6.1 W
Safety class
Class 3

Physical

Height
52 mm
Length
51 mm
Width
51 mm
Weight
0.07 kg
Mounting
alu plasterkit
Tilt max.
25°
Rotation
355°

Cutout

Length
64 mm
Width
64 mm
Min. ceiling thickness
7 mm
Max. ceiling thickness
32 mm
Recessed Depth
65 mm

Replaceability

Squared ceiling recessed luminaire made from aluminium; surface Champagne; wet painted, smooth semi glossy; recessed depth 65 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 31°; 355° rotatable and 25° tiltable; degree of protection IP20; Class 3; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Ceiling, Recessed, tilt max 25°, rotation 355°, Champagne, IP20, Interior, 520 lm, CIE flux code: 98 100 100 100 100
LED: 2700 K, CRI ≥ 90, L80 / 55000h, initial MacAdam ≤ 2 SDCM
Optical: Standard, beam angle 31°
Electrical: excl. driver, 17 V, inset 6.1 W, Class 3, 350 mA
Physical: length 51 mm, width 51 mm, height 52 mm, 0.07 kg, alu plasterkit
Cutout: length 64 mm, width 64 mm, min. ceiling thickness 7 mm, max. ceiling thickness 32 mm, recessed depth 65 mm

Accessories

The right Accessories

Driver

6W | 350mA | 8.6-18V

Plasterkit

STRANGE petit 1.0

Driver

6W | 350mA | 8.6-18V

Driver

17W | 350mA | 10-49V | DALI

Driver

14W | 350mA | 2.5-42V | DALI-2

Driver

10W | 350mA | phase-cut dim

Driver

10W | 350mA | 1-10V dim
