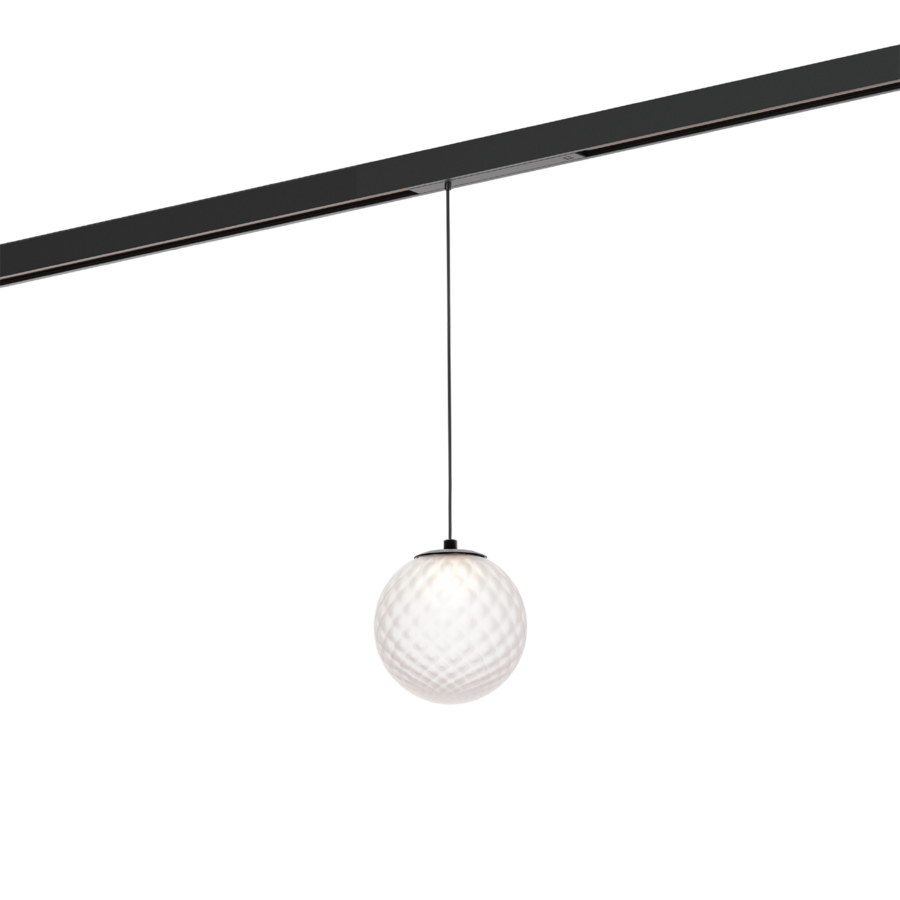

SOLLI on STREX 1.0

238185FD3
Colour
Frosted Diamond
Colour Temperature

Complete article with track accessories from accessory section

Availability Check
Availability

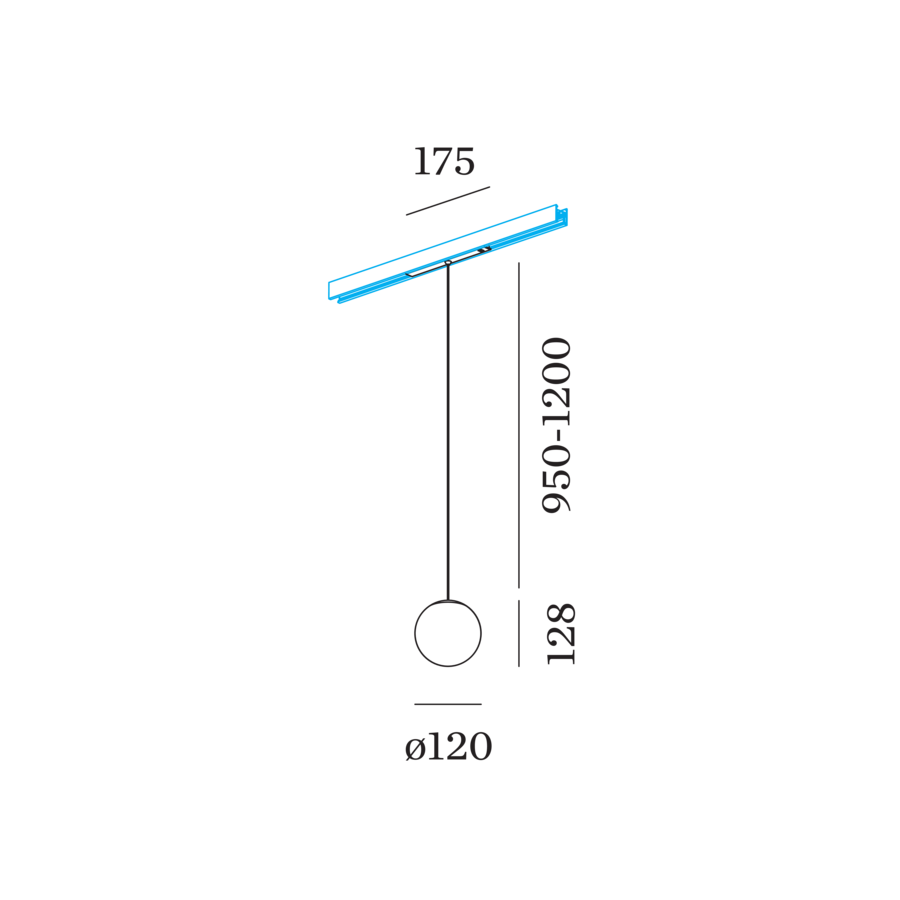

Drawing
SOLLI on STREX 1.0
Drawing

General

Scope
Interior
Mounting
Ceiling
Fixation
Track Suspended
Product colour
Frosted Diamond
Type
LED
IP Rating
IP20

LED

Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L80 / 50000h

Optical

Beam angle
Opal

Technical Details

Control
DALI-2
Voltage
48 V
Luminous flux
280 lm
LED inset power
5.3 W
Safety class
Class 3

Physical

Height
128 mm
Diameter
120 mm
Weight
0.55 kg
Mounting
incl. Strex 48 V track adapter
Suspended luminaire for 48V tracks made from aluminium; track adapter with height adjustable cable system; hand blown glass in Frosted Diamond; polycarbonate track adapter and cable in Signal Black; with COB (Chip on Board) technology for maximum efficiency; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; 48 V; degree of protection IP20; Class 3; light source replaceable by Wever & Ducré or by a professional with explicit authorization; control gear replaceable by an authorized professional;
General: Ceiling, Track Suspended, Frosted Diamond, IP20, Interior, 280 lm, CIE flux code: 26 50 75 67 100
LED: 2700 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 2 SDCM
Optical: Opal
Electrical: DALI-2, 48 V, inset 5.3 W, Class 3
Physical: diameter 120 mm, height 128 mm, 0.55 kg, cable length 950-1200 mm, adapter175 mm, incl. Strex 48 V track adapter

Accessories

The right Accessories

Track Profile 1m

STREX system | surface/suspended
Black

Track Profile 1m

STREX system | recessed
Black

Track Profile 1m

STREX system | surface/suspended
White

Track Profile 1m

STREX system | recessed
White

Blank Cover 2m

STREX system
Black

Blank Cover 2m

STREX system
White

DALI Selv Device

STREX system

Power Feed

STREX system
Black

Power Feed

STREX system
White

End Cap

STREX system | surface/suspended
Bronze

End Cap

STREX system | surface/suspended
Champagne

End Cap

STREX system | surface/suspended
Black

End Cap

STREX system | recessed
Black

End Cap

STREX system | surface/suspended
White

End Cap

STREX system | recessed
White

L-Connector

STREX system | surface/suspended
Bronze + Black

L-Connector

STREX system | surface/suspended
Champagne + Black

L-Connector

STREX system | surface/suspended
Black

L-Connector

STREX system | recessed
Black

L-Connector

STREX system | surface/suspended
White

L-Connector

STREX system | recessed
White

L-Connector non-electrical

STREX system | surface
Bronze + Black

L-Connector non-electrical

STREX system | surface
Champagne + Black

L-Connector non-electrical

STREX system | recessed
Black

L-Connector non-electrical

STREX system | surface
Black

L-Connector non-electrical

STREX system | recessed
White

L-Connector non-electrical

STREX system | surface
White

Mounting Bracket

STREX system | recessed

Suspension Set

STREX system | 1.5m | suspended
Black

Suspension Set

STREX system | 1.5m | suspended
Stainless Steel

Suspension Set

STREX system | 3.0m | suspended
Black

Suspension Set

STREX system | 3.0m | suspended
Stainless Steel

T-Connector

STREX system | surface
Black

T-Connector

STREX system | surface
White

Connector

STREX system
Black

Connector

STREX system
White

X-Connector

STREX system | surface
Black

X-Connector

STREX system | surface
White

Ceiling Driver 100W

STREX system | suspended
Black

Ceiling Driver 100W

STREX system | suspended
White

Ceiling Driver 150W

STREX system | suspended
Black

Ceiling Driver 150W

STREX system | suspended
White

In Line Driver 100W

STREX system | surface
Black

In Line Driver 100W

STREX system | suspended
Black

In Line Driver 100W

STREX system | surface
White

In Line Driver 100W

STREX system | suspended
White

In Line Driver 150W

STREX system | surface
Black

In Line Driver 150W

STREX system | suspended
Black

In Line Driver 150W

STREX system | surface
White

In Line Driver 150W

STREX system | suspended
White

In Track Driver 100W

STREX system | surface
Black

In Track Driver 100W

STREX system | surface
White

In Track Driver 100W

STREX system | surface
Bronze + Black

In Track Driver 100W

STREX system | surface
Champagne + Black

In Track Driver 100W

STREX system | surface
Black

In Track Driver 100W

STREX system | surface
White

In Track Driver 100W

STREX system | suspended
Black

In Track Driver 100W

STREX system | suspended
White

In Track Driver 250W

STREX system | surface
Black

In Track Driver 250W

STREX system | surface
White

In Track Driver 250W

STREX system | surface
Bronze + Black

In Track Driver 250W

STREX system | surface
Champagne + Black

In Track Driver 250W

STREX system | surface
Black

In Track Driver 250W

STREX system | surface
White

In Track Driver 250W

STREX system | suspended
Black

In Track Driver 250W

STREX system | suspended
White

Driver

STREX system | 100W

Driver

STREX system | 150W

Driver

STREX system | 250W
