RAY WALL OUTDOOR 2.0

749148W5
Colour
White Matt
Colour Temperature

Availability Check
Availability

General

Scope
Exterior
Mounting
Wall
Fixation
Surface
Product colour
White Matt
RAL colour code
RAL 9010
Type
LED
IP Rating
IP65

LED

Light Colour
3000 K

Optical

Beam angle
Variable

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Light flux
920 lm
Total power
11 W
Safety class
Class 1

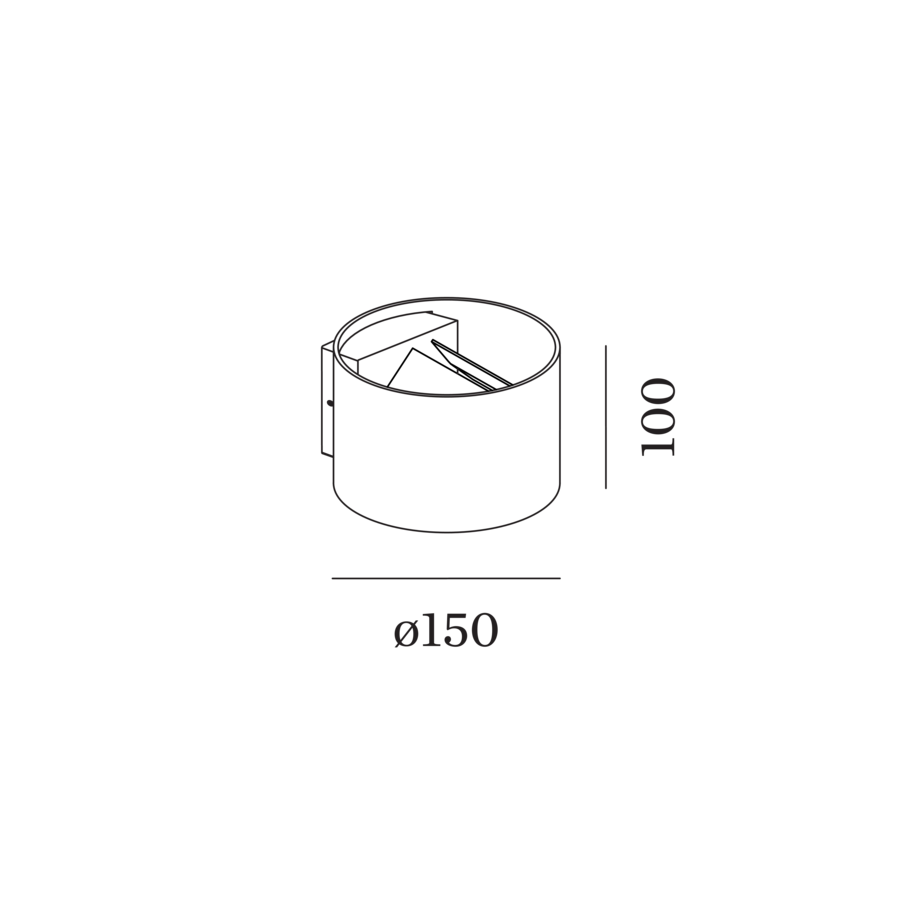

Physical

Height
100 mm
Diameter
150 mm
Weight
0.47 kg

Replaceability

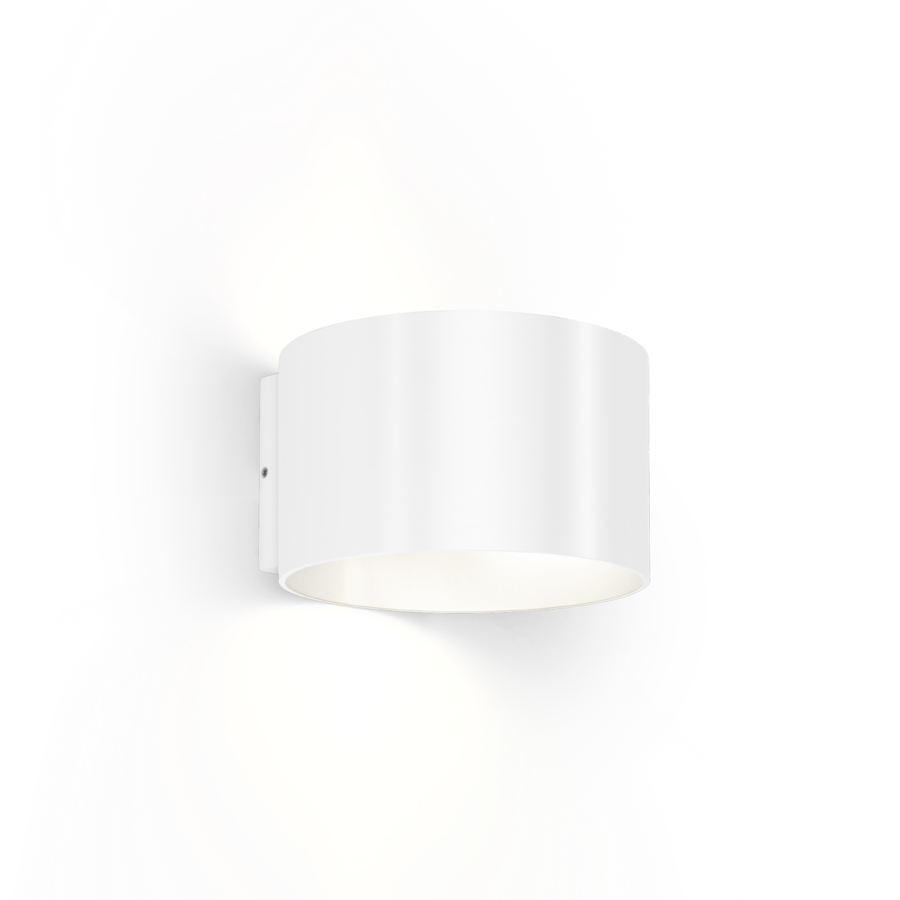

Cylindrical wall surface mounted luminaire made from aluminium; surface White Matt; powder coated; matt texture; RAL 9010; direct/indirect light distribution; PCB 3-step binning; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 220 - 240 V; degree of protection IP65; Class 1; inclusive flaps for adjustable beam angle; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Wall, Surface, White Matt, RAL 9010, IP65, Exterior, total 920 lm
LED: 3000 K, CRI ≥ 90, L80 / 55000h, initial MacAdam ≤ 3 SDCM
Optical: Variable
Electrical: phase-cut dim, 220 - 240 V, system 11.0 W, Class 1
Physical: diameter 150 mm, height 100 mm, 0.47 kg
