General
Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
Insulation Contact
IC rated
LED
Light Colour
3000 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L70 / 55000h
Optical
Beam angle
31° Standard
Technical Details
Control
excl. driver
Voltage
17 V
Converter current
350 mA
Luminous flux
1,580 lm
LED inset power
6.1 W
Safety class
Class 3

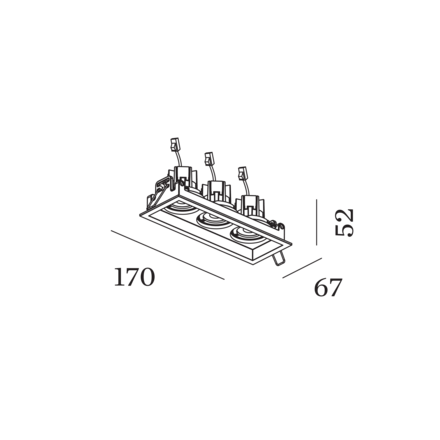

Physical
Height
52 mm
Length
170 mm
Width
67 mm
Weight
0.22 kg
Mounting
wire springs
Tilt max.
25°
Rotation
355°
Cutout
Length
54 mm
Width
162 mm
Min. ceiling thickness
2 mm
Max. ceiling thickness
22 mm
Recessed Depth
65 mm
Replaceability

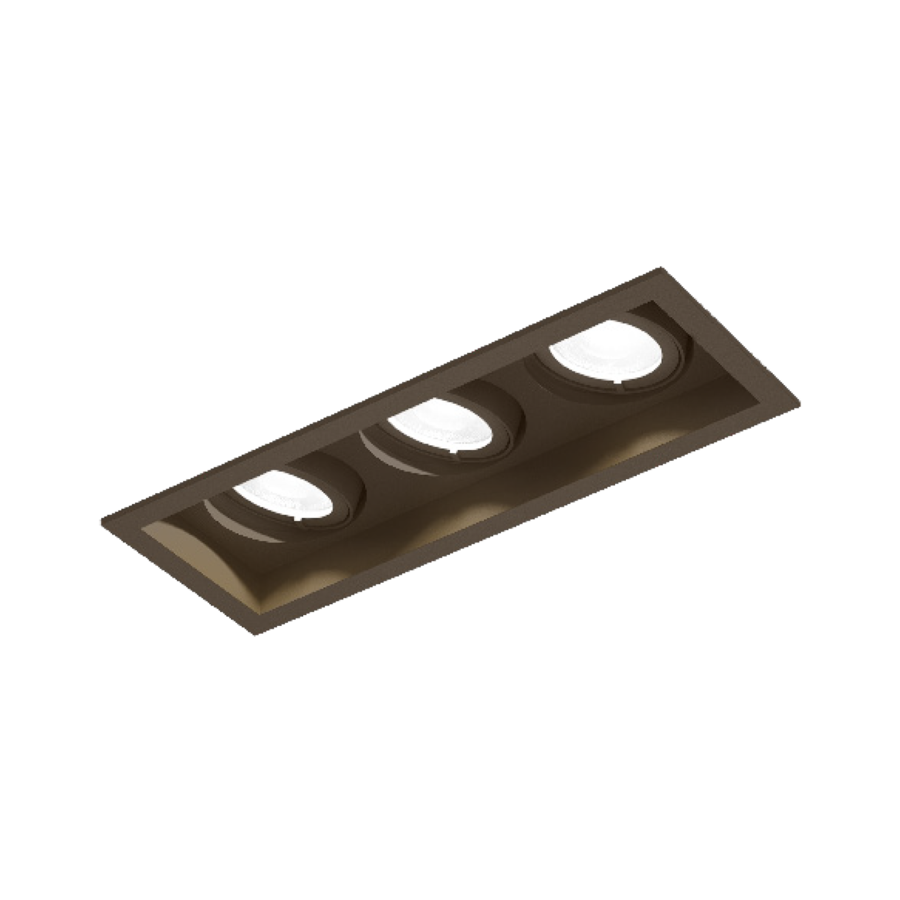

Rectangular ceiling recessed downlight made from die-cast aluminium; adjustable; surface Black Matt; powder coated, matt texture; RAL 9005; installation without tools using wire springs; suitable for ceiling thickness of 2-22 mm; recessed depth 65 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 31°; 355° rotatable and 25° tiltable; degree of protection IP20; Class 3; IC rated; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General:
Ceiling, Recessed, tilt max 25°, rotation 355°, Black Matt, RAL 9005, IP20, IC rated, Interior, 1580 lm, CIE flux code: 98 100 100 100 100
LED:
3000 K, CRI ≥ 90, L70 / 55000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 31°
Electrical:
excl. driver, 17 V, inset 6.1 W, total insets 18.4 W, Class 3, 350 mA
Physical:
length 170 mm, width 67 mm, height 52 mm, 0.22 kg, wire springs
Cutout:
length 54 mm, width 162 mm, min. ceiling thickness 2 mm, max. ceiling thickness 22 mm, recessed depth 65 mm
