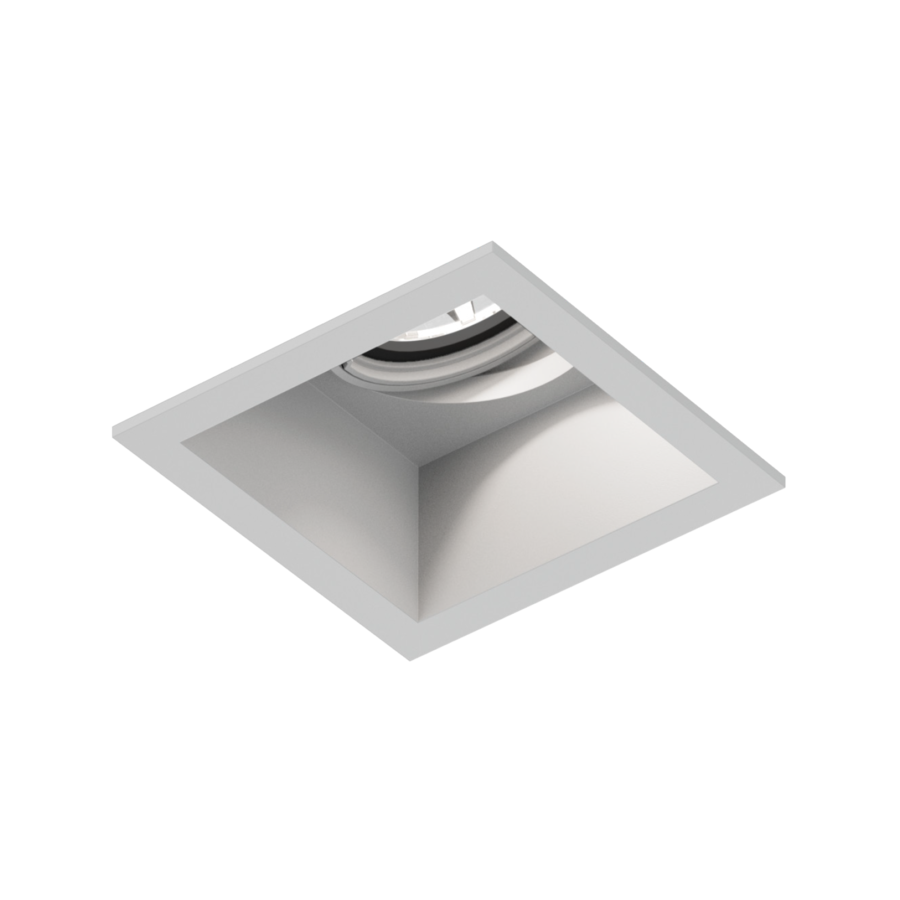

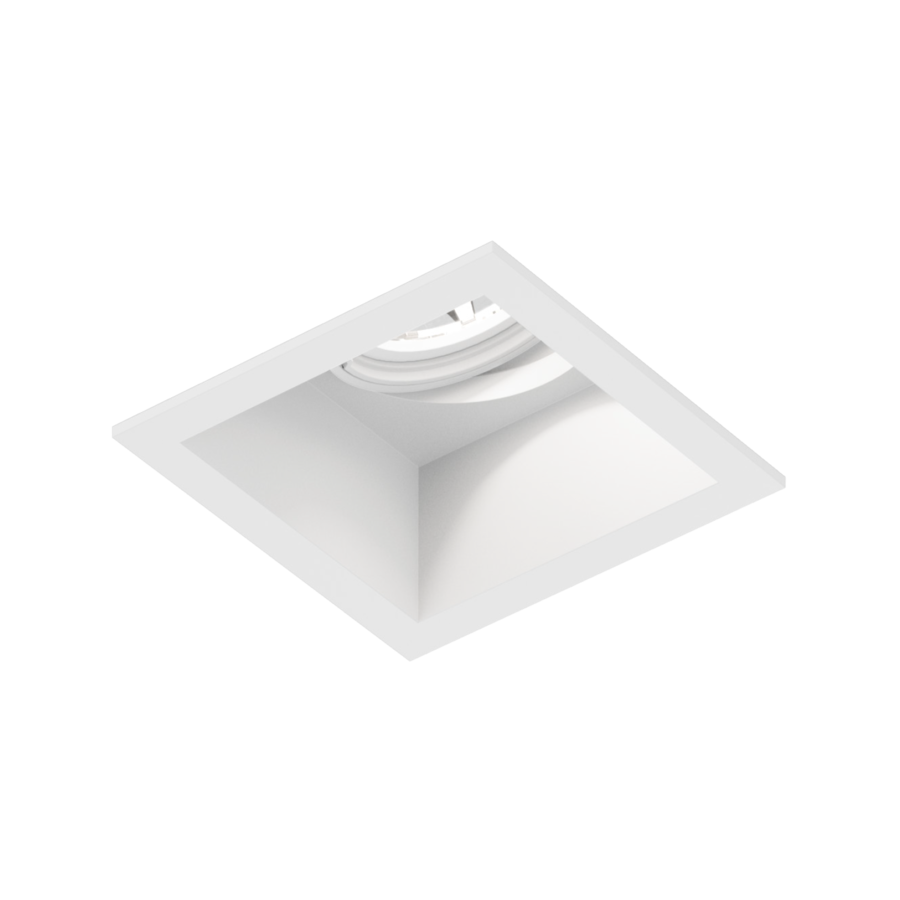

Squared ceiling recessed downlight made from die-cast aluminium; adjustable; surface White Matt; powder coated, matt texture; RAL 9010; installation without tools using wire springs; suitable for ceiling thickness of 2-18 mm; recessed depth 95 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; beam angle 15°; 355° rotatable and 35° tiltable; degree of protection IP20; Class 3; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General:
Ceiling, Recessed, tilt max 35°, rotation 355°, White Matt, RAL 9010, IP20, Interior, 510 | 685 lm, CIE flux code: 92 97 99 100 100
LED:
2700 K, CRI ≥ 90, L80 / 55000h, initial MacAdam ≤ 2 SDCM
Optical:
Narrow, beam angle 15°
Electrical:
excl. driver, 17 V, inset 6.0 | 9.0 W, Class 3, 350 | 500 mA
Physical:

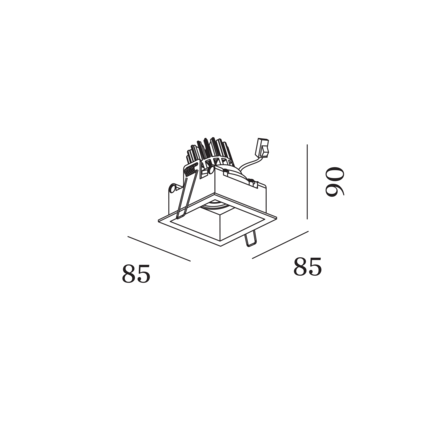

length 85 mm, width 85 mm, height 90 mm, 0.26 kg, wire springs
Cutout:
length 74 mm, width 78 mm, min. ceiling thickness 2 mm, max. ceiling thickness 18 mm, recessed depth 95 mm
