Visualisation

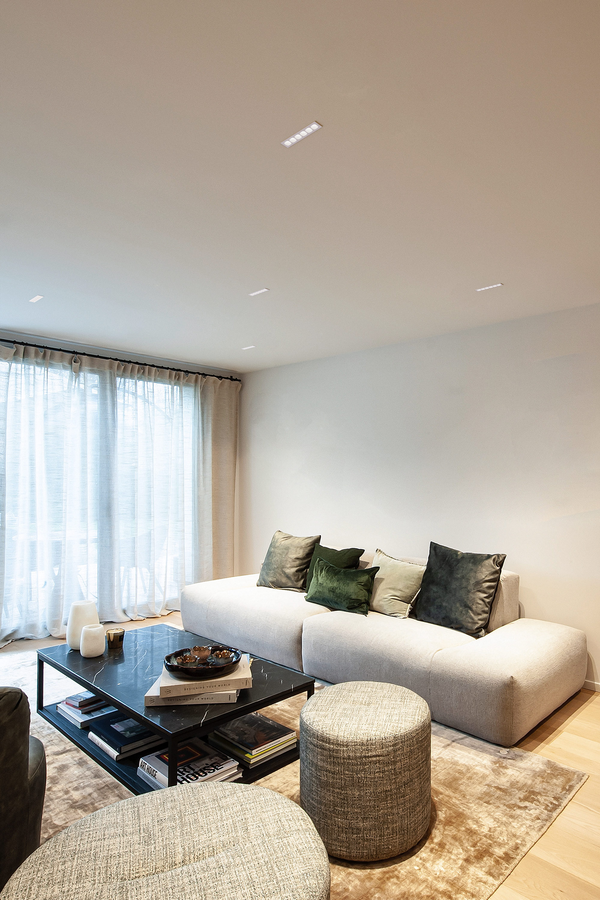

Example picture
PIRRO petit 4.0
Visualisation
Example picture
PIRRO petit 6.0
General
Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Black Matt + Champagne
Type
LED
IP Rating
IP20
Insulation Contact
IC rated
LED
Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L80 / 50000h
Optical
Beam angle
28° Standard
Technical Details
Control
excl. driver
Voltage
12 V
Converter current
350 mA
Luminous flux
320 lm
LED inset power
3.8 W
Safety class
Class 3
Physical
Height
40 mm
Length
66 mm
Width
40 mm
Weight
0.07 kg
Mounting
wire springs
Cutout
Length
64 mm
Width
33 mm
Min. ceiling thickness
4 mm
Max. ceiling thickness
25 mm
Recessed Depth
60 mm
Replaceability
Awards
Rectangular ceiling recessed downlight made from die-cast aluminium; surface Black Matt + Champagne; installation without tools using wire springs; suitable for ceiling thickness of 4-25 mm; recessed depth 60 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; beam angle 28°; degree of protection IP20; Class 3; IC rated; UGR ≤ 13; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General:
Ceiling, Recessed, Black Matt + Champagne, IP20, IC rated, Interior, 320 lm, CIE flux code: 98 100 100 100 100
LED:
2700 K, CRI ≥ 90, L80 / 50000h, initial MacAdam ≤ 3 SDCM
Optical:
Standard, beam angle 28°
Electrical:
excl. driver, 12 V, inset 3.8 W, Class 3, 350 mA
Physical:
length 66 mm, width 40 mm, height 40 mm, 0.07 kg, wire springs
Cutout:
length 64 mm, width 33 mm, min. ceiling thickness 4 mm, max. ceiling thickness 25 mm, recessed depth 60 mm
