PIRRO 6.0
150661B3
Complete article with driver from accessory section
Optional optical accessories available
Availability Check
General
Scope
Interior
Mounting
Ceiling
Fixation
Recessed
Product colour
Black Matt
RAL colour code
RAL 9005
Type
LED
IP Rating
IP20
Insulation Contact
IC rated
LED
Light Colour
2700 K
Colour Rendering Index
CRI ≥ 90
LED lifetime
L70 / 55000h
Optical
Beam angle
32° Standard
Technical Details
Control
excl. driver
Voltage
2 x 27 V
Converter current
500 mA
Luminous flux
2,300 lm
LED inset power
25 W
Safety class
Class 3
Physical
Height
43 mm
Length
276 mm
Width
56 mm
Weight
0.4 kg
Mounting
wire springs
Cutout
Length
269 mm
Width
50 mm
Min. ceiling thickness
4 mm
Max. ceiling thickness
25 mm
Recessed Depth
60 mm
Replaceability
Awards

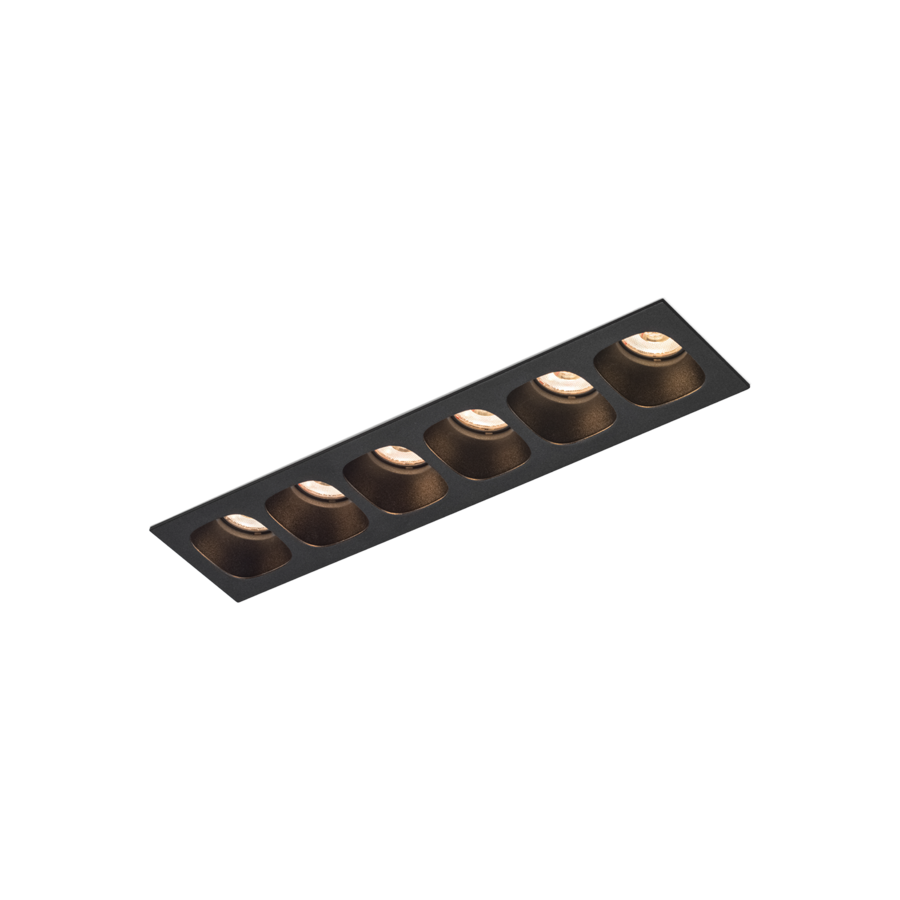

Rectangular ceiling recessed downlight made from die-cast aluminium; housing Black Matt powder coated; matt texture; with reflector in Black Matt wet painted; matt fine texture; installation without tools using wire springs; suitable for ceiling thickness of 4-25 mm; recessed depth 60 mm; with COB (Chip on Board) technology for maximum efficiency; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; degree of protection IP20; Class 3; IC rated; UGR ≤ 16; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General:
Ceiling, Recessed, Black Matt, RAL 9005, IP20, IC rated, Interior, 2300 lm, CIE flux code: 98 99 100 100 100
LED:
2700 K, CRI ≥ 90, L70 / 55000h, initial MacAdam ≤ 2 SDCM
Optical:
Standard, beam angle 32°
Electrical:
excl. driver, 2 x 27 V, inset 25.0 W, Class 3, 500 mA
Physical:
length 276 mm, width 56 mm, height 43 mm, 0.4 kg, wire springs
Cutout:
length 269 mm, width 50 mm, min. ceiling thickness 4 mm, max. ceiling thickness 25 mm, recessed depth 60 mm
