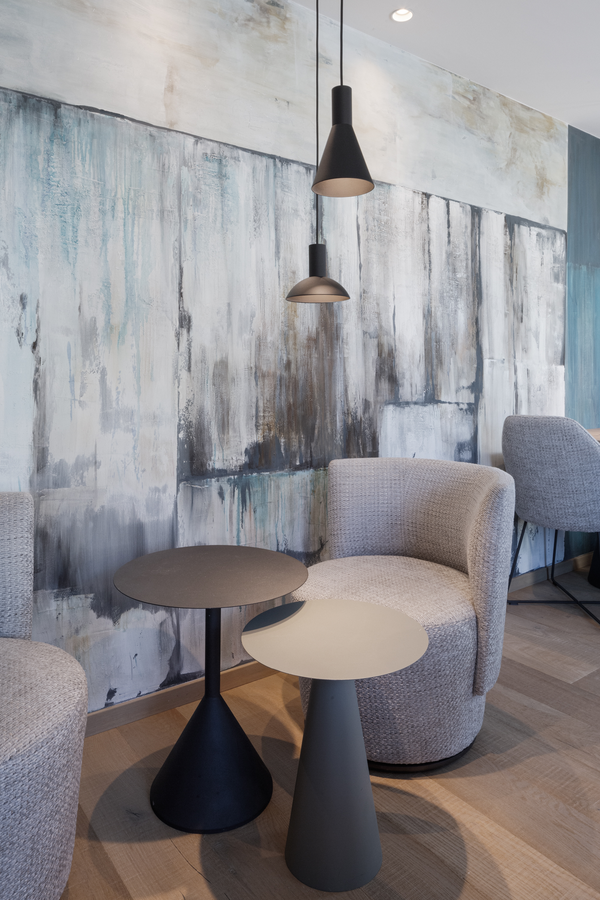

Hotel Meerberg Pertisau
Hotel Meerberg Pertisau

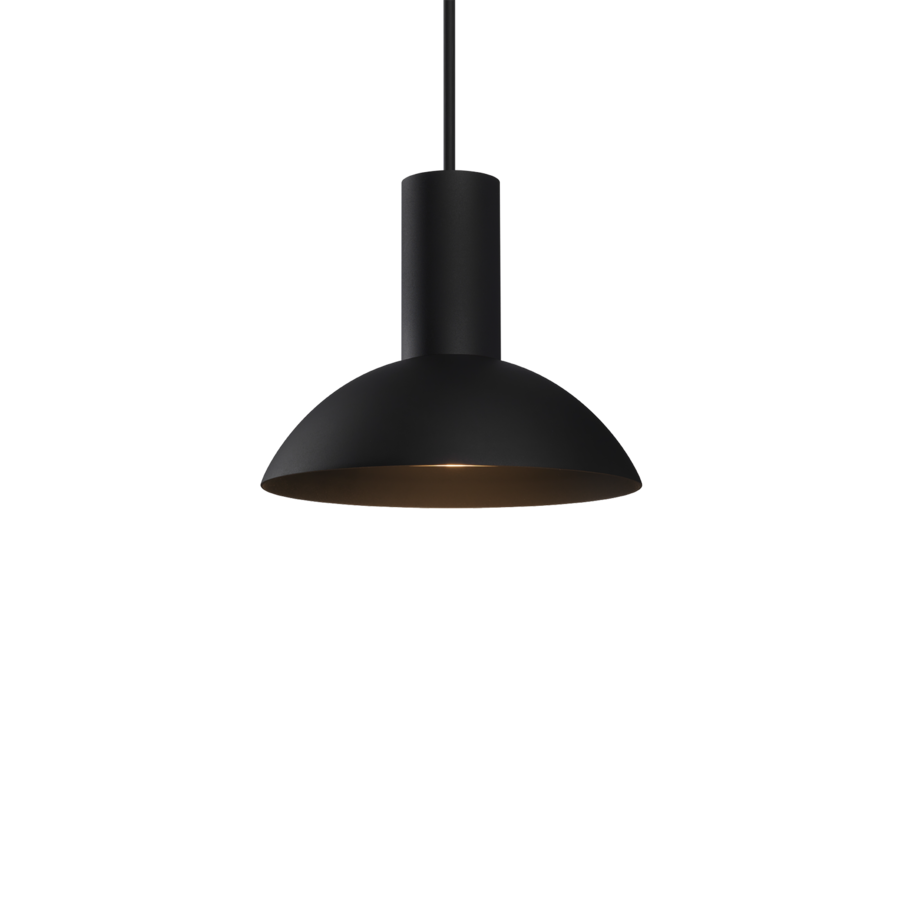

ODREY 1.7

287720BB0
Colour
Black Matt

Complete article with ceiling base and lamp from accessory section
Optical accessories available

Availability Check
Availability

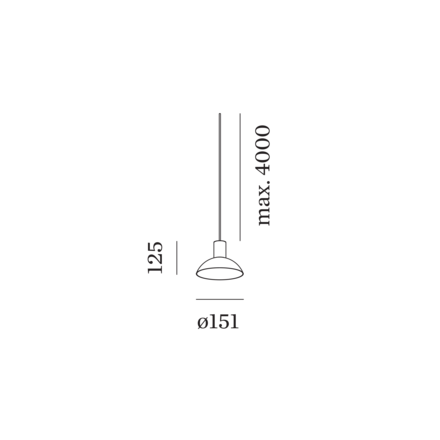

Drawing
ODREY 1.7

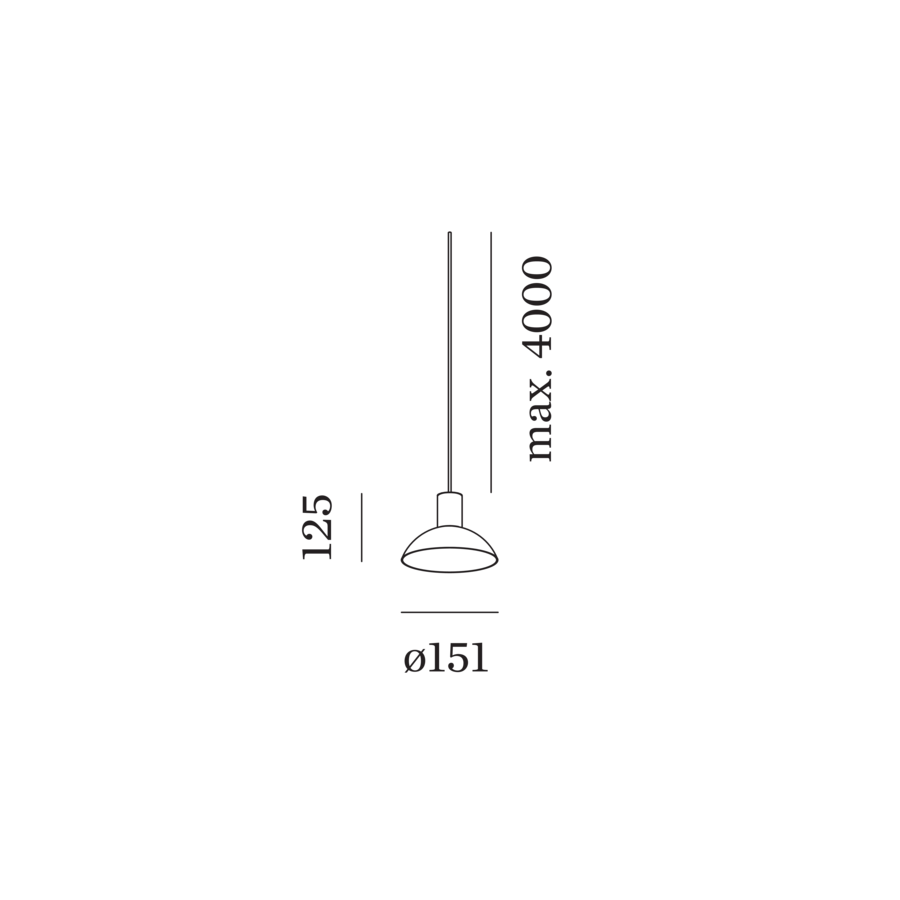

Drawing

General

Scope
Interior
Mounting
Ceiling
Fixation
Suspended
Product colour
Black Matt
RAL colour code
RAL 9005
Type
PAR16
IP Rating
IP20

Technical Details

Voltage
100 - 240 V
Lamp Type
PAR16
Lamp socket
GU10
Safety class
Class 1

Physical

Height
125 mm
Diameter
151 mm
Weight
0.3 kg
Ceiling suspended luminaire made from aluminium; surface Black Matt wet painted; matt texture; RAL 9005; inclusive adjustable cable suspension max. 4000mm in Signal Black; lamp socket GU10; lamp type PAR16; max. 12W; 100 - 240 V; degree of protection IP20; Class 1; ceiling base not included;
General: Ceiling, Suspended, Black Matt, RAL 9005, IP20, Interior, 480 | 460 lm, CIE flux code: 94 98 100 100 100
LED: lamp PAR16, socket GU10, max. per socket 12.0 W, CRI ≥ 90
Electrical: 100 - 240 V, inset 6.5 W, Class 1
Physical: diameter 151 mm, height 125 mm, 0.3 kg

Accessories

The right Accessories

Single base

ceiling base round
Black

Multiple base linear

up to max. 2 luminaires
Black

PAR16 LED Lamp

2700K | >90 CRI | GU10
Black

Single base

ceiling base round
Black

Single base

ceiling base round
White

Hook

for cable 4.25-5.5mm diameter
Black

Hook

for cable 4.25-5.5mm diameter
White

Hook

standard multi suspension hook
Black

Hook

standard multi suspension hook
White

Hook

optional multi suspension hook
Black

Hook

optional multi suspension hook
White

Semi recessed base

for shades without steel wire only
Black

Semi recessed base

for shades without steel wire only
White

Multiple base linear

up to max. 2 luminaires
Black

Multiple base linear

up to max. 3 luminaires
Black

Multiple base linear

up to max. 4 luminaires
Black

Multiple base linear

up to max. 5 luminaires
Black

Multiple base linear

up to max. 2 luminaires
White

Multiple base linear

up to max. 3 luminaires
White

Multiple base linear

up to max. 4 luminaires
White

Multiple base linear

up to max. 5 luminaires
White

Multiple base round

up to max. 8 luminaires
Black

Multiple base round

up to max. 4 luminaires
Black

Multiple base round

up to max. 8 luminaires
White

Multiple base round

up to max. 4 luminaires
White

Cable Wall-Ceiling Bracket

Black

Cable Wall-Ceiling Bracket

White

Wall Base

for 1 luminaire
Black

Wall Base

for 1 luminaire
White

Invisible ceiling base

Black

Invisible ceiling base

White

Track Adapter 2.0

1-phase track
Black

Track Adapter 2.0

1-phase track
White

PAR16 LED Lamp

2700K | >80 CRI | GU10
Silver

PAR16 LED Lamp

3000K | >80 CRI | GU10
Silver

PAR16 LED Lamp

2700K | >90 CRI | GU10
Black

PAR16 LED Lamp

3000K | >90 CRI | GU10
Black

PAR16 LED Lamp

2700K | >90 CRI | GU10
White

PAR16 LED Lamp

3000K | >90 CRI | GU10
White

Inner cover

suitable for ODREY 1.6 | 1.7
Gold

Inner cover

suitable for ODREY 1.6 | 1.7
Black

Inner cover

suitable for ODREY 1.6 | 1.7
White
