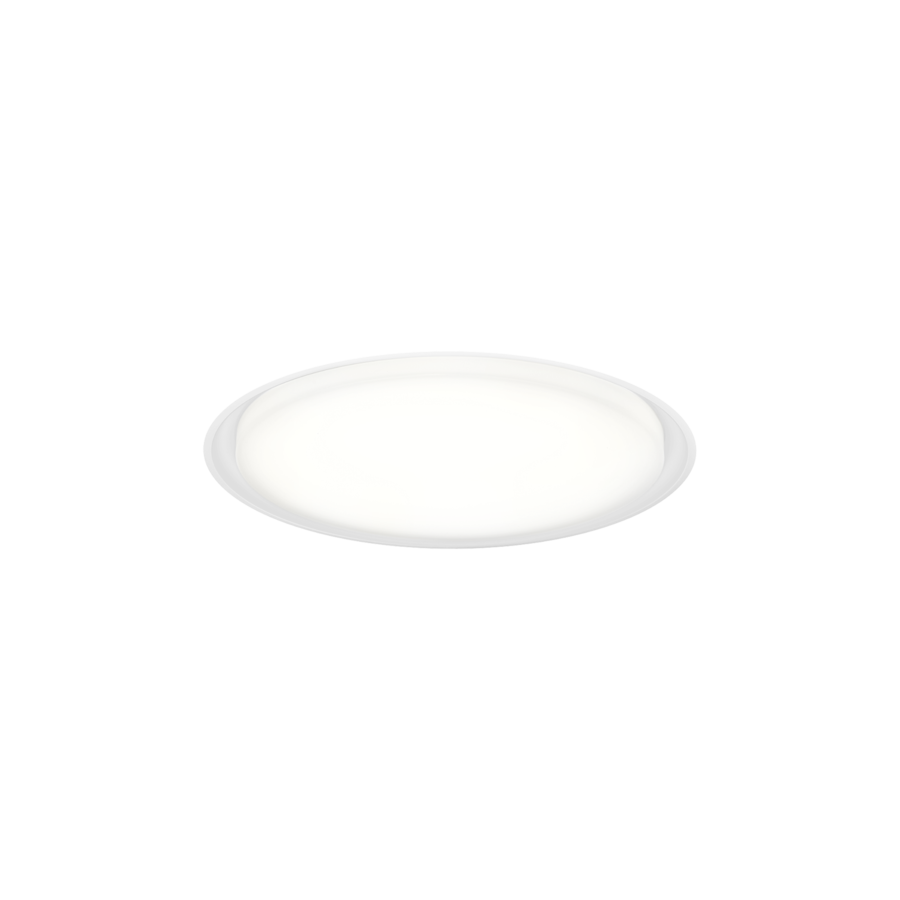

Round ceiling recessed luminaire made from aluminium; opal PMMA cover; surface White Matt; powder coated; matt texture; installation without tools using blade springs; recessed depth 50 mm; suitable for ceiling thickness of 4-22 mm; PCB 3-step binning; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; degree of protection IP44; Class 1; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General:
Ceiling, Recessed, White Matt, front IP44, back IP20, Interior, 1170 lm, CIE flux code: 46 77 94 100 100
LED:
3000 K, CRI ≥ 90, L80 / 60000h, initial MacAdam ≤ 3 SDCM
Optical:
Opal
Electrical:
phase-cut dim, 220 - 240 V, system 12.3 W, Class 1
Physical:

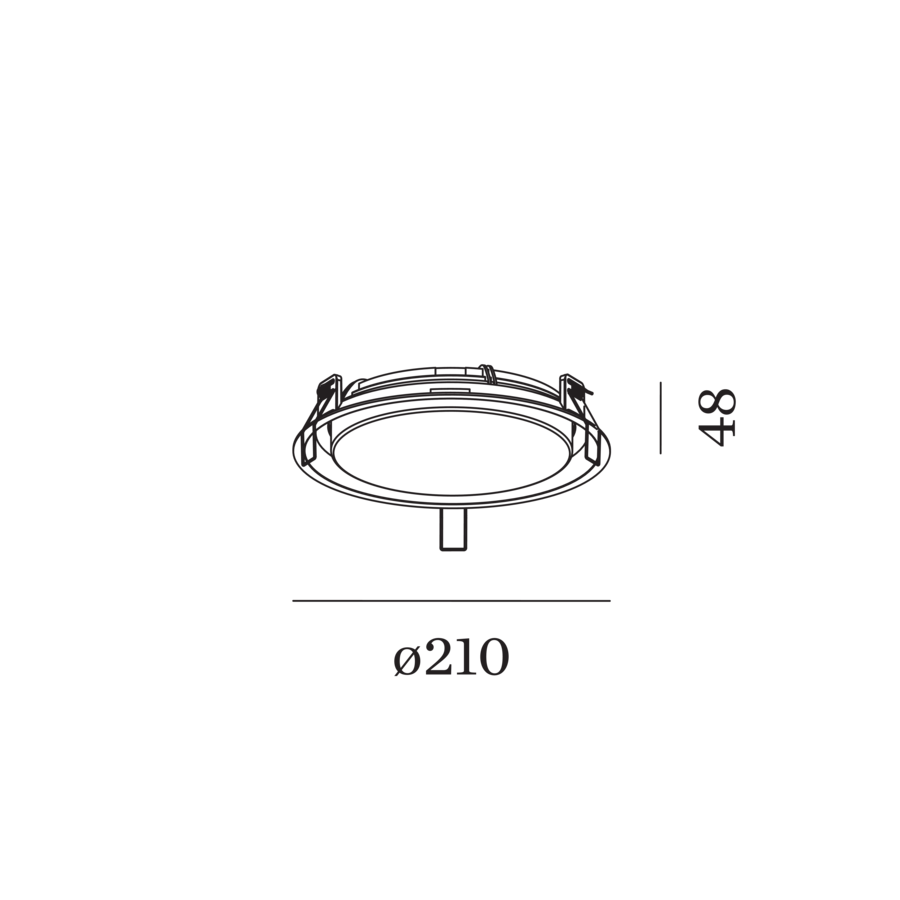

diameter 210 mm, height 48 mm, 0.64 kg, wire springs
Cutout:
diameter 202-205 mm, min. ceiling thickness 4 mm, max. ceiling thickness 22 mm, recessed depth 50 mm
