River Front
River Front
CHART 1.6
CHART 1.6
CHART 1.6
CHART 1.6

CHART 1.6

752468I5
Colour
Inox
Colour Temperature
List price
519,10 €
incl 20% VAT

Optional mounting accessories available

Availability Check
Availability
Drawing
CHART 1.6
Drawing

General

Scope
Exterior
Mounting
Floor
Fixation
Recessed
Product colour
Inox
Type
LED
IP Rating
IP67
Shock resistance rating
IK09

LED

Light Colour
3000 K
LED lifetime
L70 / 55000h

Optical

UGR
UGR < 10
Beam angle
38° Standard

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
1,260 lm
Total power
16.1 W
Safety class
Class 2

Physical

Height
139 mm
Length
160 mm
Width
160 mm
Weight
1.45 kg

Cutout

Recessed Depth
185 mm

Replaceability

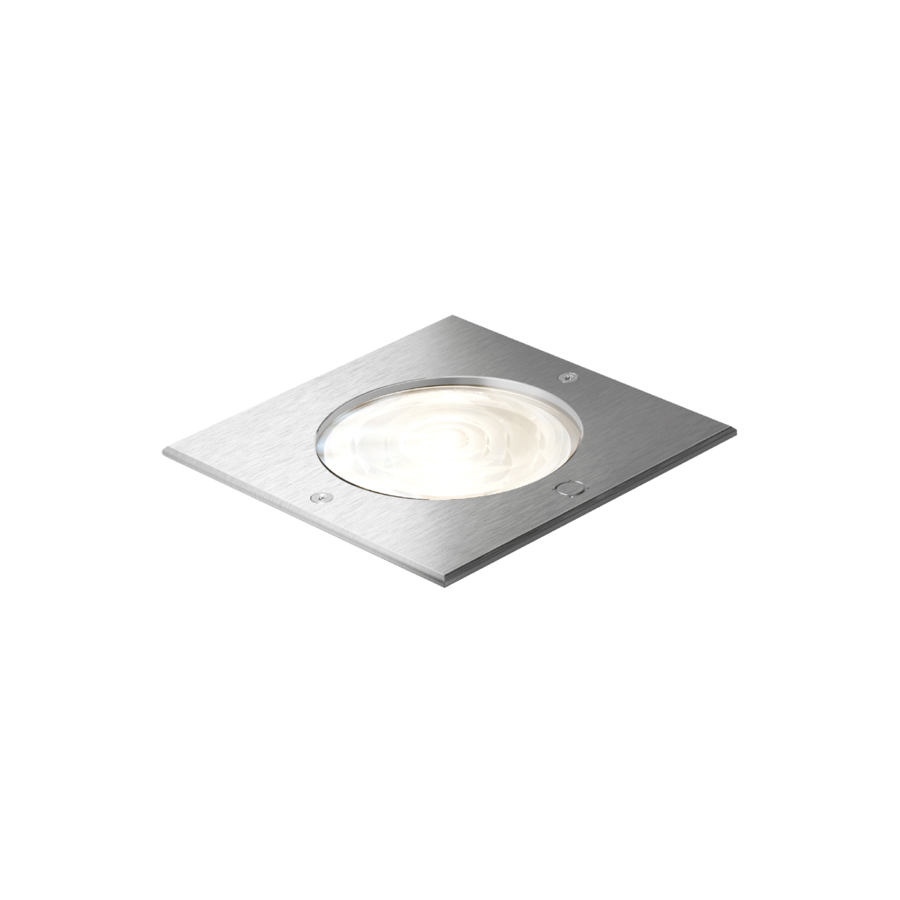

Square floor recessed luminaire made from stainless steel and glass; surface Inox; recessed depth 185 mm; with COB (Chip on Board) technology for maximum efficiency; phase-cut dim; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; beam angle 38°; degree of protection IP67; Class 2; driver not included; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Floor, Recessed, Inox, IP67, IK09, Exterior, 1260 lm, CIE flux code: 36 58 79 0 100
LED: 3000 K, CRI ≥ 90, L70 / 55000h, initial MacAdam ≤ 3 SDCM
Optical: Standard, beam angle 38°, UGR < 10, ≥65° <1500 cd/m²
Electrical: phase-cut dim, 220 - 240 V, system 16.1 W, Class 2
Physical: length 160 mm, width 160 mm, height 139 mm, 1.45 kg
Cutout: recessed depth 185 mm

Accessories

The right Accessories

Ground Housing

MAP 1.6 | CHART 1.6 | MAP ASYM 1.6 | CHART ASYM 1.6

Ground Housing

MAP 1.6 | CHART 1.6 | MAP ASYM 1.6 | CHART ASYM 1.6
