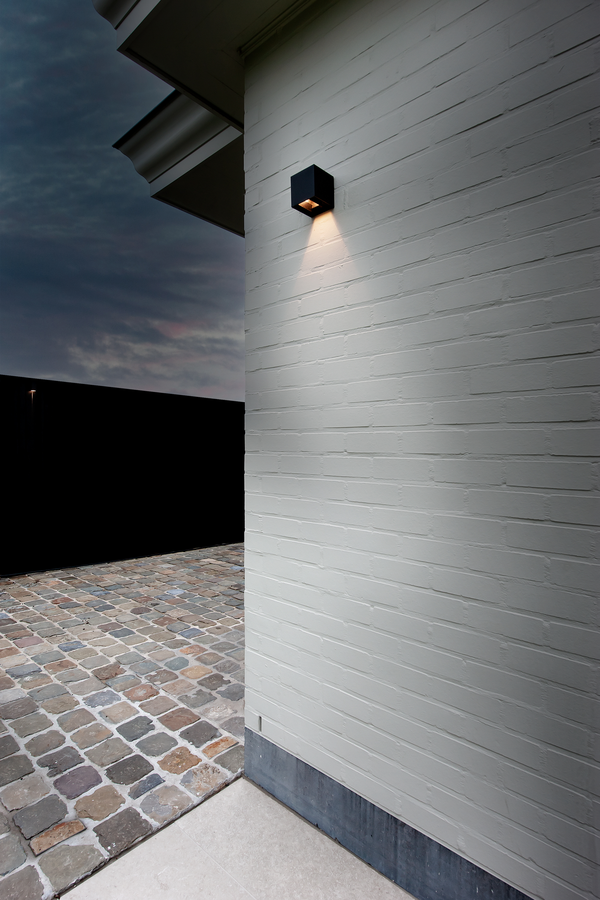

Private Residence Belgium
Private Residence Belgium
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0
BOX WALL OUTDOOR 1.0

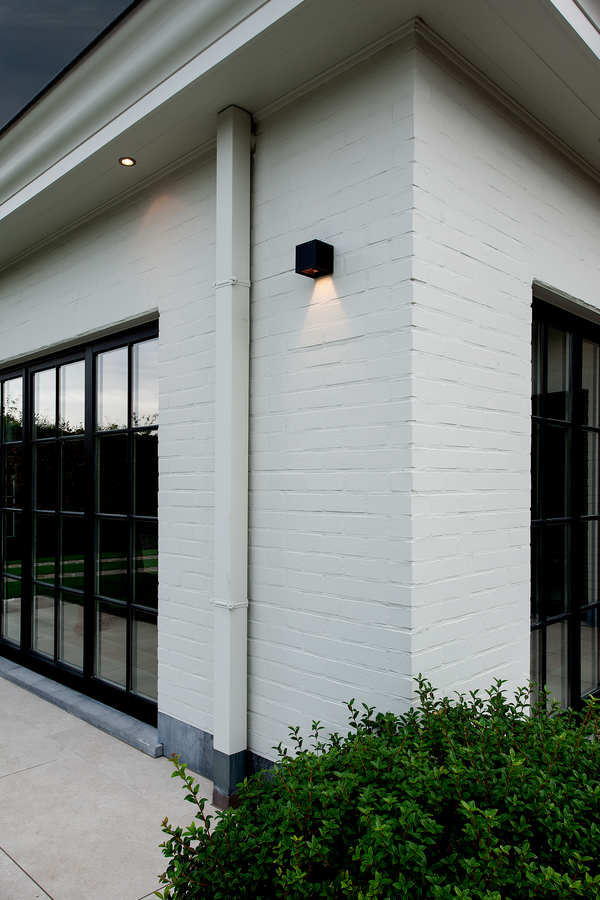

Private Residence Belgium
Private Residence Belgium

BOX WALL OUTDOOR 1.0

740168W2
Colour
White Matt
Colour Temperature
Article number
This is a previous version with slightly different specs, switch article number for newer version
Availability Check
Availability

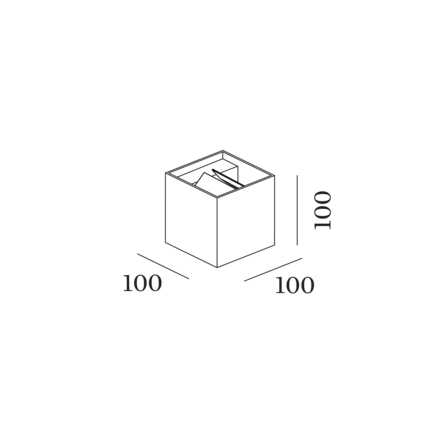

Drawing
BOX WALL OUTDOOR 1.0

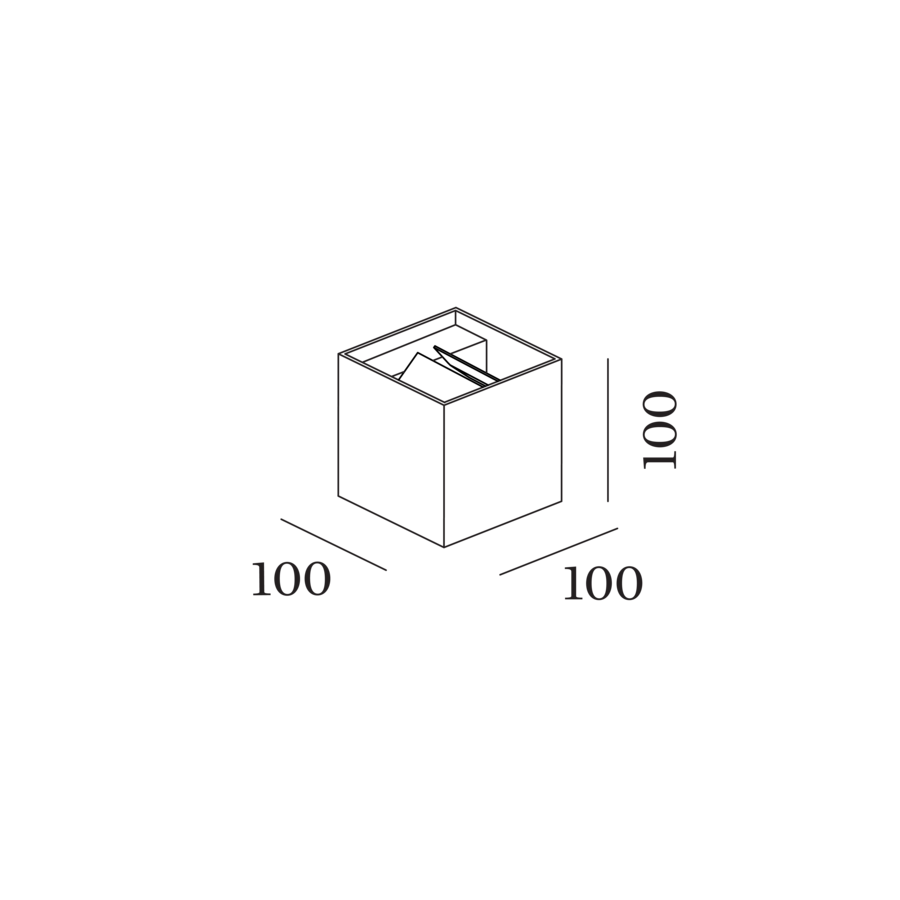

Drawing

General

Scope
Exterior
Mounting
Wall
Fixation
Surface
Product colour
White Matt
RAL colour code
RAL 9010
Type
LED
IP Rating
IP65

LED

Light Colour
2700 K

Optical

Beam angle
Variable

Technical Details

Control
phase-cut dim
Voltage
220 - 240 V
Luminous flux
400 lm
Total power
6 W
Safety class
Class 1

Physical

Height
100 mm
Length
100 mm
Width
100 mm
Weight
0.6 kg

Replaceability

Squared wall surface mounted luminaire made from aluminium; surface White Matt; powder coated; matt texture; RAL 9010; direct light distribution; PCB 3-step binning; phase-cut dim; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; 220 - 240 V; degree of protection IP65; Class 1; inclusive flaps for adjustable beam angle; light source replaceable by Wever & Ducré or by a professional with explicit authorization;
General: Wall, Surface, White Matt, RAL 9010, IP65, Exterior, 400 lm
LED: 2700 K, CRI ≥ 90, L80 / 90000 h, initial MacAdam ≤ 3 SDCM
Optical: Variable
Electrical: phase-cut dim, 220 - 240 V, system 6.0 W, Class 1
Physical: length 100 mm, width 100 mm, height 100 mm, 0.6 kg
